Description
Enjoy flexible and scalable high-performance Ethernet connectivity in workstation, virtual workstation, and cloud computing environments with an Intel X540 10Gb Ethernet Dual Port Adapter.
-
High-speed throughput
Experience fast network performance with 20 Gbps full duplex Ethernet transfer rate per port and 10GBASE-T connectivity up to 100 meters with CAT 6A cabling (or better, sold separately). -
Enterprise-class features
Get support for VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, PXE boot), VMware NetQueue, and Microsoft VM. -
Supported by HP
Protect your investment with a warranty that is backed the same world-class support HP service and support you get for your workstation.
Specifications
Summary
- Product Description

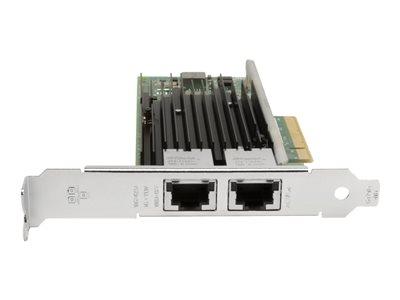

- Intel X540-T2 - network adapter - PCIe 2.1 - 10Gb Ethernet x 2
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1
- PCI Specification Revision
- PCIe 2.1
- Ports
- 10Gb Ethernet x 2
- Dimensions (WxDxH)
- 1.8 cm x 15.2 cm x 6.9 cm
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- 1GbE, 10GbE
- Data Transfer Rate
- 10 Gbps
- Network / Transport Protocol
- TCP/IP, UDP/IP
- Compliant Standards
- IEEE 802.1Q
- System Requirements
- Microsoft Windows 7, Linux 2.6.x, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2003 SP2, Red Hat Enterprise Linux 6, VMware ESXi, Windows 8, Microsoft Windows Server 2012, VMware ESX, Linux 3.x, FreeBSD 9, Microsoft Windows Server 2012 R2
- Designed For
- Workstation Z440, Z640, Z840
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1
- PCI Specification Revision
- PCIe 2.1
Networking
- Ports
- 10Gb Ethernet x 2
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- Gigabit Ethernet, 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Network / Transport Protocol
- TCP/IP, UDP/IP
- Features
- Auto-negotiation, VLAN support, IPv6 support, full duplex mode, TCP/IP offloading, Jumbo Frames support, IPv4 support, teaming support, PXE support, LSO, RSS, SR-IOV, TSO, checksum offload support, MSI-X, Network Bonding support, PTP, UDP/IP checksum offload
- Compliant Standards
- IEEE 802.1Q
Expansion / Connectivity
- Interfaces
- 2 x 10GBase-T
Software / System Requirements
- OS Required
- Microsoft Windows 7, Linux 2.6.x, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Vista SP2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Microsoft Windows Server 2003 SP2, Red Hat Enterprise Linux 6, VMware ESXi, Windows 8, Microsoft Windows Server 2012, VMware ESX, Linux 3.x, FreeBSD 9, Microsoft Windows Server 2012 R2
Dimensions & Weight
- Width
- 1.8 cm
- Depth
- 15.2 cm
- Height
- 6.9 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
Compatibility Information
- Designed For
- HP Workstation Z440, Z640, Z840
