Description

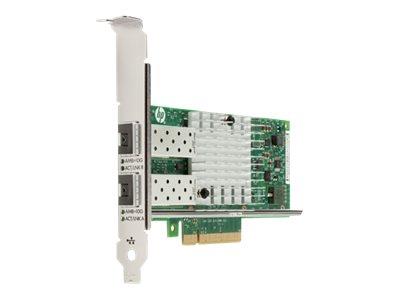

The HP X520 10GbE Dual Port Adapter is ideal for high performance workstation computing, workstation virtualization, security, consolidation, and other applications requiring the highest throughput.
Specifications
Summary
- Product Description
- Intel X520 - network adapter - PCIe 2.0 x8 - 2 ports
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x8
- Ports Qty
- 2 ports
- Data Link Protocol
- 10 GigE
- Data Transfer Rate
- 10 Gbps
- Processor
- Intel
- Designed For
- Workstation Z220, Z230, Z420, Z620, Z820
Detailed Specification
General
- Device Type
- Network adapter - 2 ports
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x8
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Features
- IPv6 support, Jumbo Frames support, PXE support, Receive Side Scaling (RSS), checksum offload support, Extended Message-Signaled Interrupts (MSI-X)
Processor / Memory
- Processor
- Intel
Expansion / Connectivity
- Interfaces
- 2 x network - SFP+
- Compatible Slots
- 1 x PCI Express 2.0 x8 - low-profile
Miscellaneous
- Included Accessories
- Low-profile bracket, full-height bracket
- Compliant Standards
- UL, VCCI, C-Tick, BSMI, KCC
Compatibility Information
- Designed For
- HP Workstation Z220, Z230, Z420, Z620, Z820
