Description

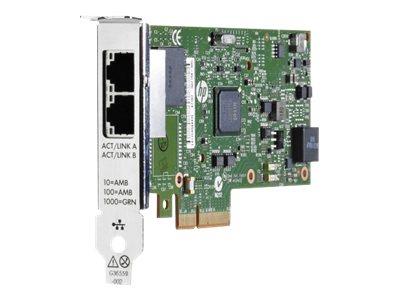

The HP 361T offers two high-performing 1GbE PCIe Gen 2.1 connections in a low cost, low power, halogen-free design. Based on the new fully integrated (bridgeless) Intel Ethernet I350 Controller, it introduces new levels of performance and power management technologies for HP ProLiant Gen8 DL/ML/SL servers and select G7 servers. It can be used with a full height or low profile bracket, and can operate at three different data rates (10/100/1000 Mbps). The HP 361T is positioned as the follow-on to the HP NC360T.
-
Single-chip, Dual-port, 1 Gb Ethernet Adapter Designed for Performance and Energy Savings
An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
Specifications
Summary
- Product Description
- HPE 361T - network adapter - PCIe 2.0 x4 - Gigabit Ethernet x 2
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x4
- PCI Specification Revision
- PCIe 2.0
- Ports
- Gigabit Ethernet x 2
- Dimensions (WxDxH)
- 13.5 cm x 6.4 cm
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Data Transfer Rate
- 1 Gbps
- Processor
- 1 x Intel I350
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
- System Requirements
- SUSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
- Designed For
- Apollo 4200 Gen10; Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL180 Gen10, DL325 Gen10, DL360 Gen10, DL380 Gen10, DL388 Gen10, DL388p Gen8, DL560 Gen10, ML350 Gen10
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.0 x4
- PCI Specification Revision
- PCIe 2.0
Networking
- Ports
- Gigabit Ethernet x 2
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate
- 1 Gbps
- Remote Management Protocol
- SNMP
- Status Indicators
- Port transmission speed, link/activity
- Features
- Auto-negotiation, WOL, NFT, Jumbo Frames support, PXE support, LSO, Energy Efficient Ethernet
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor / Memory
- Processor
- 1 x Intel I350
Expansion / Connectivity
- Interfaces
- 2 x 1000Base-T - RJ-45
- Compatible Slots
- 1 x PCI Express 2.0 x4 - low-profile
Miscellaneous
- Included Accessories
- Low-profile bracket
- Compliant Standards
- FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A
Software / System Requirements
- OS Required
- SUSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
Dimensions & Weight
- Depth
- 13.5 cm
- Height
- 6.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10 , HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 , HPE ProLiant DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL230k Gen10 Compute Tray, XL450 Gen10 , HPE SimpliVity 380 Gen9 Node
