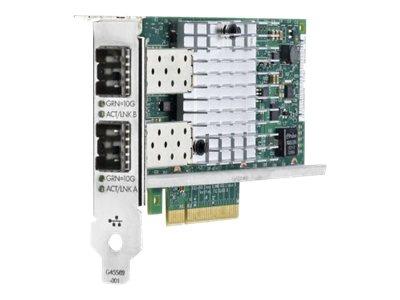

HPE HP Ethernet 10Gb 2P 560SFP+ Adaptor

HPE HP Ethernet 10Gb 2P 560SFP+ Adaptor

Review this product
Quicklinx: 9DHQWS00 Mfr#: 665249-B21
Wired / Wireless: Wired
Protocol: 10 Gigabit Ethernet
Form Factor: Plug-in card
Compatibility: PC
Type: Network adapter
Ordered upon request
£1,405.21 ex VAT
£1,686.25 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The HP Ethernet 10Gb 2-port 560SFP+ Adapter features the latest Intel 82599 controller. It is a low-cost, low-power dual port PCIe v2.0 x8 adapter designed for HP ProLiant Gen8 and select G7 ML/DL/SL servers. The HP 560SFP+ addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization and scalability that compliment the HP Gen8 server platform. The HP 560SFP+ comes with both low profile and standard brackets and has two SFP+ cages that enable connections with DACs as well as SR fiber optic modules. It is SR-IOV ready and supports high performance networking features such as VLAN tagging, low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), jumbo frames, and PXE boot.

  • Addresses the Demanding Needs of the Next Generation Data Center

    The HPE Ethernet 10Gb 2-port 560SFP+ Adapter is an easy to install and configure PCIe v2.0 x8 adapter that fits in a standard PCIe slot and comes with low profile and standard brackets. Two SFP+ cages enable connections with DACs and SR fiber optic modules.Delivers 20 Gb/s full duplex Ethernet transfer rate per port (40 Gb/s aggregate).New I/O technologies increase performance, reduce system power and I/O latency, and support Precision Time Stamping protocol (IEEE 1588 and 802.1AS).Optimized for virtualization (VLAN tagging, NetQueue, VMQ, VMDq).Supports Wake-on-LAN (WOL) at 1 Gb, PXE, MSI-X, NIC teaming, IPv6, and HPE Sea of Sensors 3D Technology.

Specifications

Summary

Product Description
HPE 560SFP+ - network adapter - PCIe 2.0 x8 - 10Gb Ethernet x 2
Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 2.0 x8
PCI Specification Revision
PCI 2.0
Ports
10Gb Ethernet x 2
Data Link Protocol
10GbE
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Processor
Intel
RAM
256 MB
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ak, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1au
Designed For
Apollo 4200 Gen9; ProLiant DL180 Gen9, DL20 Gen9, DL360p Gen8, DL380 Gen9, DL385p Gen8, DL388p Gen8, DL560 Gen9, DL80 Gen9, ML110 Gen9, ML30 Gen9, ML310e Gen8, ML350 Gen9, ML350e Gen8, ML350p Gen8, SL270s Gen8, XL170r Gen9, XL190r Gen9, XL270d Gen9; SimpliVity 380 Gen9; StoreEasy 1450, 1850, 3850


Detailed Specification

General

Device Type
Network adapter
Form Factor
Plug-in card
Interface (Bus) Type
PCI Express 2.0 x8
PCI Specification Revision
PCI 2.0

Networking

Ports
10Gb Ethernet x 2
Connectivity Technology
Wired
Data Link Protocol
10 Gigabit Ethernet
Data Transfer Rate
10 Gbps
Network / Transport Protocol
TCP/IP, UDP/IP
Status Indicators
Port status, link/activity
Features
VLAN support, IPv6 support, Jumbo Frames support, IPv4 support, PXE support, TCP Segmentation Offload (TSO)
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.3ak, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1au

Processor / Memory

Processor
Intel
RAM
256 MB

Expansion / Connectivity

Interfaces
2 x 10Gb Ethernet - SFP+
Compatible Slots
1 x PCI Express 2.0 x8

Miscellaneous

Compliant Standards
FCC Class A certified, UL, BSMI, VCCI Class B ITE, BSMI CNS 13438 Class B, ICES-003, EN55024, CISPR 22, EN55022 Class B, FCC Part 15, WEEE, RoHS, EN 61000-3-2:2006, EN 61000-3-3:2008

Power

Power Consumption Operational
10 Watt

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)

Compatibility Information

Designed For
HPE Apollo 4200 Gen9 for Google , HPE ProLiant DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL320e Gen8, DL320e Gen8 Base, DL320e Gen8 Entry, DL320e Gen8 Performance, DL360e Gen8, DL360e Gen8 Base, DL360e Gen8 Entry, DL360e Gen8 Performance, DL360e Gen8 Special Server, DL360p Gen8, DL360p Gen8 CMS, DL360p Gen8 Special Server, DL380 Gen9 High Performance, DL380e Gen8, DL380e Gen8 Base, DL380e Gen8 Entry, DL380e Gen8 High Performance, DL380e Gen8 Storage, DL380p Gen8 Special, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL388p Gen8 Base, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL80 Gen9 Entry, ML110 Gen9, ML110 Gen9 Base, ML110 Gen9 Entry, ML30 Gen9, ML30 Gen9 Base, ML30 Gen9 Entry, ML30 Gen9 Performance, ML30 Gen9 Solution, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry, ML310e Gen8 Performance, ML310e Gen8 v2, ML350 Gen9, ML350 Gen9 Base, ML350 Gen9 Entry, ML350 Gen9 Performance, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Right Half Width Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, XL170r Gen9, XL190r Gen9, XL270d Gen9 , HPE SimpliVity 380 Gen9 Node , HPE StoreEasy 1450, 1850, 3850 Gateway Single Node
