Description

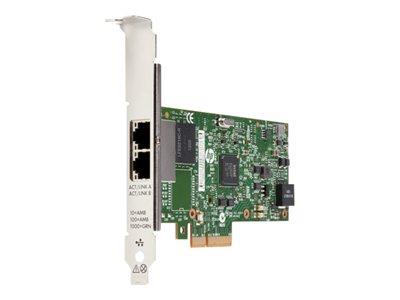

The HP 361T PCIe Dual Port Gigabit NIC is a high performance PCI Express (PCIe) Gen 2.1 dual port, copper, gigabit network solution for HP Z-Workstation customers who demand the latest in dual port Gigabit Ethernet bandwidth and features.
Specifications
Summary
- Product Description
- HP 361T - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 2
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1 x4
- PCI Specification Revision
- PCIe 2.1
- Ports
- Gigabit Ethernet x 2
- Dimensions (WxDxH)
- 13.5 cm x 6.4 cm
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Data Transfer Rate
- 1 Gbps
- Processor
- 1 x Intel I350
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
- System Requirements
- Red Hat Enterprise Linux 4, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 10, Red Hat Enterprise Linux 5, Microsoft Windows 7 Professional (32/64 bits), Red Hat Enterprise Linux 6
- Designed For
- Workstation Z220, Z420, Z620, Z820
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1 x4
- PCI Specification Revision
- PCIe 2.1
Networking
- Ports
- Gigabit Ethernet x 2
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate
- 1 Gbps
- Remote Management Protocol
- SNMP
- Status Indicators
- Port transmission speed, link/activity
- Features
- Auto-negotiation, WOL, NFT, Jumbo Frames support, PXE support, LSO, Energy Efficient Ethernet
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor / Memory
- Processor
- 1 x Intel I350
Expansion / Connectivity
- Interfaces
- 2 x 1000Base-T - RJ-45
- Compatible Slots
- 1 x PCI Express 2.1 x4 - low-profile
Miscellaneous
- Included Accessories
- Low-profile bracket
- Compliant Standards
- FCC Class B certified, DOC-B, EN 60950, UL 1950, VCCI-II, EN55024, UL 60950, WHQL, EN55022 Class B, RoHS, ACPI 1.1a
Software / System Requirements
- OS Required
- Red Hat Enterprise Linux 4, SUSE Linux Enterprise Desktop 11, SUSE Linux Enterprise Desktop 10, Red Hat Enterprise Linux 5, Microsoft Windows 7 Professional (32/64 bits), Red Hat Enterprise Linux 6
Dimensions & Weight
- Depth
- 13.5 cm
- Height
- 6.4 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
Compatibility Information
- Designed For
- HP Workstation Z220, Z420, Z620, Z820
