Description

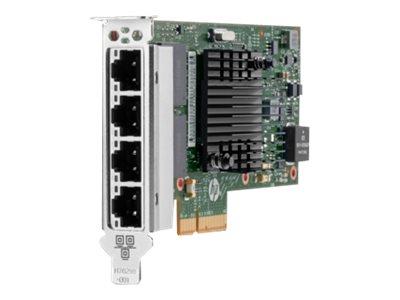

Need a low cost, low power 1GbE adapter for your HPE ProLiant Gen 9 server? The HPE Ethernet 1Gb 4-port 366T Adapter features a single chip solution, further reducing power requirements for 4 ports of 1 Gb Ethernet. The HPE 366T is PCI Express 2.1 x4 based on the latest Intel Ethernet Controller I350 designed for use with select HPE ProLiant Gen9 rack, tower and density optimized servers.
-
New Level of Performance and Power Management in a 1GbE Card for HPE ProLiant Gen9 DL/ML/XL Servers
Fully integrated (bridgeless) Intel Ethernet I350 Controller, optimized for the new Integrated I/O and Data Direct I/O technologies.Quad port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile brackets.New I/O technologies reduce system power, increase I/O performance and reduce I/O latency.
Specifications
Summary
- Product Description
- HPE 366T - network adapter - PCIe 2.1 x4 - Gigabit Ethernet x 4
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1 x4
- PCI Specification Revision
- PCIe 2.1
- Ports
- Gigabit Ethernet x 4
- Dimensions (WxDxH)
- 13.46 cm x 6.86 cm
- Data Link Protocol
- GigE
- Data Transfer Rate
- 1 Gbps
- Processor
- 1 x Intel I350
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
- System Requirements
- SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, VMware vSphere 5.0, VMware vSphere 4.1
- Designed For
- Edgeline e920; Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10; ProLiant DL180 Gen10, DL360 Gen10, DL380 Gen10, DL560 Gen10, ML350 Gen10, XL170r Gen10, XL190r Gen10; SimpliVity 380 Gen10
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card - low profile
- Interface (Bus) Type
- PCI Express 2.1 x4
- PCI Specification Revision
- PCIe 2.1
Networking
- Ports
- Gigabit Ethernet x 4
- Connectivity Technology
- Wired
- Data Link Protocol
- Gigabit Ethernet
- Data Transfer Rate
- 1 Gbps
- Remote Management Protocol
- SNMP
- Status Indicators
- Port transmission speed, link/activity
- Features
- Fault tolerance, load balancing, Jumbo Frames support, PXE support, Large Send Offload (LSO), Extended Message-Signaled Interrupts (MSI-X)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Processor / Memory
- Processor
- 1 x Intel I350
Expansion / Connectivity
- Interfaces
- 4 x Ethernet 1000 - RJ-45
Miscellaneous
- Included Accessories
- Full-height bracket, half-height bracket
- Compliant Standards
- UL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, WEEE, RoHS, FCC Part 15 A, ICES, VCCI V-3 Class A ITE
Software / System Requirements
- OS Required
- SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows Server 2008 Enterprise, Microsoft Windows Server 2008 Standard, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Microsoft Windows Small Business Server 2011, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, VMware vSphere 5.0, VMware vSphere 4.1
Dimensions & Weight
- Depth
- 13.46 cm
- Height
- 6.86 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- HPE Apollo 4200 Gen10 , HPE Edgeline e920, e920d , HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 , HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10 for SAP HANA Compute Block, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, DX380 Gen10, DX560 Gen10, ML110 Gen10, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10 Base, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 , HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node, 380 Gen10 Node
