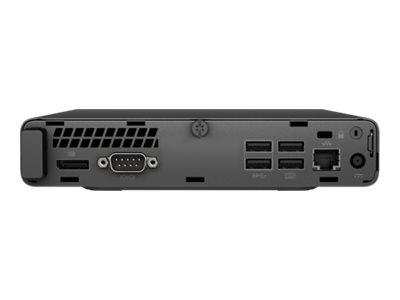

HP ProDesk 400 G3 DM Intel Core i5-7500T 4GB 500GB Windows 10 Pro 64-bit

HP ProDesk 400 G3 DM Intel Core i5-7500T 4GB 500GB Windows 10 Pro 64-bit

Review this product
Quicklinx: D6H4WS00 Mfr#: 1EX77ET#ABU
  • Core i5
Discontinued

Description

Give your business the strong foundation it needs for growth with the affordable and reliable HP ProDesk 400 MT. Designed with essential security and manageability features, the HP ProDesk 400 helps keep your business growing.

  • Powerful options

    Power through your day with high-performance 7th Gen Intel Core i3/i5/i7 processors, optional Intel Optane memory and SSDs, and up to 32 GB of DDR4 memory.
  • Simple mounting solutions

    Create the right solution for your workplace with mounting options for your HP ProDesk Mini. Secure and innovative options enable mounting behind compatible monitors, under desks, or virtually anywhere.
  • HP exclusive security and manageability

    Help prevent data breaches and downtime with HP BIOSphere Gen3.

Specifications

Summary

Product Description
HP ProDesk 400 G3 - mini desktop - Core i5 7500T 2.7 GHz - 4 GB - 500 GB
Type
Personal computer - mini desktop
Localisation
Language: English / region: United Kingdom
Processor
1 x Intel Core i5 (7th Gen) 7500T / 2.7 GHz (3.3 GHz) (Quad-Core)
Processor Socket
LGA1151 Socket
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
Cache Memory
6 MB
Cache Per Processor
6 MB
RAM
4 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC - PC4-19200
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
1 x 500 GB - SATA 6Gb/s - 7200 rpm
Optical Storage
No optical drive
Graphics Controller
Intel HD Graphics 630
Audio Output
Stereo
Networking
GigE
Power
AC 120/230 V (50/60 Hz)
OS Provided
Windows 10 Pro 64-bit Edition
Dimensions (WxDxH)
17.7 cm x 17.47 cm x 3.42 cm
Weight
1.21 kg
Manufacturer Warranty
Limited warranty - parts and labour - 1 year - on-site


Detail

General

Type
Personal computer
Product Form Factor
Mini desktop
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Localisation
Language: English / region: United Kingdom

Processor / Chipset

CPU
Intel Core i5 (7th Gen) 7500T / 2.7 GHz
Max Turbo Speed
3.3 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
CPU Upgradability
Upgradable
Processor Main Features
Intel Turbo Boost Technology 2, Intel Smart Cache
CPU Socket
LGA1151 Socket
Chipset Type
Intel H270

Cache Memory

Installed Size
6 MB
Cache Per Processor
6 MB

RAM

Installed Size
4 GB / 32 GB (max)
Technology
DDR4 SDRAM - non-ECC
Effective Memory Speed
2400 MHz
Rated Memory Speed
2400 MHz
Memory Specification Compliance
PC4-19200
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 1 (empty)
Features
Unbuffered, dual channel memory architecture
Configuration Features
1 x 4 GB

Hard Drive

Type
HDD
Capacity
1 x 500 GB
Interface Type
SATA 6Gb/s
Spindle Speed
7200 rpm

Storage Controller

Type
1 x SATA
Controller Interface Type
SATA 6Gb/s

Optical Storage

Type
No optical drive

Monitor

Monitor Type
None.

Graphics Controller

Graphics Processor
Intel HD Graphics 630
Video Interfaces
DisplayPort
HDCP compatible
Yes
Max Monitors Supported
3

Audio Output

Sound Output Mode
Stereo
Max Sampling Rate
192 kHz
Compliant Standards
High Definition Audio

Input Device

Type
Mouse

Mouse

Mouse Name
HP USB Mouse
Interface
USB

Networking

Interface (Bus) Type
PCI Express 1.1 x1
Ethernet Controller
Realtek RTL8111HSH-CG
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
SNMP 2
Features
Wake on LAN (WoL), ACPI support, PXE support, auto-uplink (auto MDI/MDI-X)
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az

Expansion / Connectivity

Bays
1 (total) / 0 (free) x internal 2.5"
Slots
1 (total) / 0 (free) x CPU , 2 (total) / 1 (free) x SO-DIMM 260-pin , 1 (total) / 1 (free) x M.2 Card - 2230 (x1 mode) , 1 (total) / 1 (free) x M.2 Card - 2280 (x4 mode)
Interfaces
2 x USB 2.0 (wake functionality) , 4 x USB 3.1 Gen 1 (2 front, 2 rear) (one of them is fast-charging) , 1 x DisplayPort , 1 x headphones/microphone (1 in front) , 1 x headphones (1 in front) , 1 x LAN (Gigabit Ethernet) , 1 x serial

Miscellaneous

Theft/Intrusion Protection
Security lock slot (cable lock sold separately), padlock loop
Security Slot Type
Kensington security slot
Mounting Interface
100 x 100 mm
Compliant Standards
ACPI

Power

Device Type
Power adapter
Nominal Voltage
AC 120/230 V (50/60 Hz)
Power Provided
65 Watt
Efficiency
89% (115VAC), 89% (230VAC)

Operating System / Software

OS Provided
Windows 10 Pro 64-bit Edition English

Manufacturer Warranty

Service & Support
Limited warranty - parts and labour - 1 year - on-site

Dimensions & Weight

Width
17.7 cm
Depth
17.47 cm
Height
3.42 cm
Weight
1.21 kg

Environmental Parameters

Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
