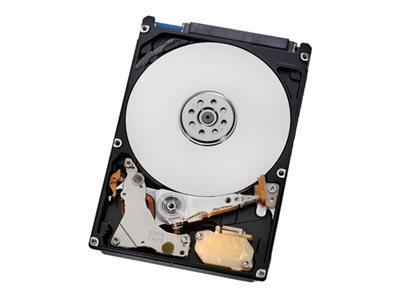

HGST 1TB Travelstar 5K1000 SATA 6GB/s 9.5mm 8MB 5400 2.5" Hard Drive

HGST 1TB Travelstar 5K1000 SATA 6GB/s 9.5mm 8MB 5400 2.5" Hard Drive

Review this product
Quicklinx: 9KDHWS00 Mfr#: 0J22413
Discontinued

Description

Travelstar 5K1000 is a 5400 RPM, 500GB/platter, 2.5-inch hard drive. This standard 9.5mm, two-disk design, intended for use in notebook PCs, external storage, gaming consoles and other mobile applications, leverages advanced format, which increases the physical sector size on hard drives from 512 bytes to 4096 (4K) bytes to increase drive capacities and improve error correction capabilities.

  • Encryption option

    Travelstar 5K1000 is the seventh generation self-encrypting drive (SED) to feature Hitachi's bulk data encryption. The SED encrypts data using protected keys in real time, providing users the highest level of data protection available. It also speeds and simplifies drive re-purposing. By deleting the encryption key, the data on the drive is rendered unreadable, thereby eliminating the need for time-consuming data-overwrite.
  • Enhanced Availability (EA) - for 24x7 access to data

    Hitachi provides enhanced availability models of the Travelstar 5K1000 that allow 24x7 access to data to support applications that require round-the-clock operation. The 5K1000 provides high capacity, durability and low power utilization on a proven platform for quality and reliability. EA models support the stringent demands of "always-on" applications in lower transaction environments.

Specifications

Summary

Product Description
WD Travelstar 5K1000 HTS541010A9E680 - hard drive - 1 TB
Type
Hard drive - internal
Capacity
1 TB
Form Factor
2.5" x 1/8H
Data Transfer Rate
600 MBps
Buffer Size
8 MB
Spindle Speed
5400 rpm
Features
TrueTrack servo technology, Thermal Flyheight Control (TFC), Advanced Format technology
Dimensions (WxDxH)
70 mm x 100 mm x 9.5 mm
Weight
102 g
Microsoft Certification
Compatible with Windows 7


Detailed Specification

General

Device Type
Hard drive - internal
Capacity
1 TB
Form Factor
2.5" x 1/8H
Buffer Size
8 MB
Bytes per Sector
512
Features
TrueTrack servo technology, Thermal Flyheight Control (TFC), Advanced Format technology
Width
70 mm
Depth
100 mm
Height
9.5 mm
Weight
102 g

Performance

Drive Transfer Rate
600 MBps (external)
Internal Data Rate
125 MBps
Seek Time
12 ms (average) / 20 ms (max)
Track-to-Track Seek Time
1 ms
Average Latency
5.5 ms
Spindle Speed
5400 rpm

Reliability

Start / Stop Cycles
600,000

Expansion & Connectivity

Interfaces
1 x - 7 pin Serial ATA
Compatible Bay
2.5" x 1/8H

Miscellaneous

Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
Halogen-free

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
60 °C
Shock Tolerance
225 g @ 1ms half-sine pulse (operating) / 1000 g @ 1ms half-sine pulse (non-operating)
