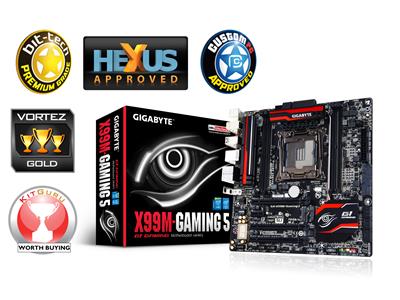

Gigabyte X99M-Gaming 5 S2011 Intel X99 DDR4 mATX

Review this product
Quicklinx: 9P9FWS00 Mfr#: GA-X99M-Gaming 5
Processor Socket: LGA2011-v3 Socket
Chipset: Intel X99 Express
Graphics: None
Form Factor: Micro ATX
Memory Support: DDR4 SDRAM
Ordered upon request
£144.57 ex VAT
£173.48 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance.

Specifications

Summary

Product Description
Gigabyte GA-X99M-Gaming 5 - 1.0 - motherboard - micro ATX - LGA2011-v3 Socket - X99
Product Type
Motherboard - micro ATX
Chipset Type
Intel X99 Express
Processor Socket
1 x LGA2011-v3 Socket
Compatible Processors
Core i7 Extreme Edition, Core i7
Max RAM Size
32 GB
RAM Supported
4 DIMM slots - DDR4 , non-ECC , registered, unbuffered
Storage Ports
6 x SATA-600 (RAID), 4 x SATA-600, 1 x SATA Express port, 1 x M.2
USB / FireWire Ports
4 x USB 3.0 + 6 x USB 2.0 + ( 4 x USB 3.0 + 4 x USB 2.0 via headers )
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - micro ATX
Chipset Type
Intel X99 Express
Processor Socket
LGA2011-v3 Socket
Max Processors Qty
1
Compatible Processors
Core i7 Extreme Edition, Core i7

Supported RAM

Max Size
32 GB
Technology
DDR4
Bus Clock
2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Registered, unbuffered
Features
Intel Extreme Memory Profiles (XMP), quad channel memory architecture

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1150
Compliant Standards
High Definition Audio

LAN

Network Controller
Killer Gaming E2201
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 2 x PCIe 3.0 x16 , 1 x PCIe 3.0 x8 , 1 x PCIe 2.0 x1 , 1 x M.2 socket
Storage Interfaces
SATA-600 -connectors: 6 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 , SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices
RAID Features
Intel Smart Response Technology
Interfaces
1 x LAN (Gigabit Ethernet) , 6 x USB 2.0 , 4 x USB 3.0 , 1 x audio line-out - mini-jack , 1 x audio line-in - mini-jack , 1 x microphone - mini-jack , 1 x audio line-out (rear) - mini-jack , 1 x audio line-out (center/subwoofer) - mini-jack , 1 x TOSLINK , 1 x PS/2 keyboard , 1 x PS/2 mouse
Internal Interfaces
4 x USB 2.0 - header , 4 x USB 3.0 - header , 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection
Hardware Features
Q-Flash, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, On/Off Charge, Intel Smart Response Technology, AMD CrossFireX technology support, Onboard Button, Nichicon High-end Audio Capacitors, All IR digital power design, GIGABYTE AMP-UP Audio, Gold Plated Audio Hardware, 2x Copper PCB, Clear CMOS Button, GIGABYTE USB DAC-UP, upgradable OP-AMP, GIGABYTE Smart Switch, IR PowIRstage ICs, GIGABYTE Ambient LED, Cooper Bussmann Chokes, Durable Black Solid Caps, 6x (30µ) Gold Plating

Miscellaneous

Software Included
Norton Internet Security, @BIOS, EasyTune, Cloud Station, GIGABYTE EZ Setup, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE Game Controller, GIGABYTE V-Tuner
Compliant Standards
Plug and Play, ACPI 5.0
Width
24.4 cm
Depth
24.4 cm
