Gigabyte GA-AB350M-Gaming 3 AMD B350 AM4 DDR4 M.2 USB3.1 micro ATX

Review this product
Quicklinx: CR05WS00 Mfr#: GA-AB350M-Gaming 3
Processor Socket: Socket AM4
Chipset: AMD B350 FCH
Graphics: Graphics adapter (CPU required)
Form Factor: Micro ATX
Memory Support: DDR4 SDRAM
Hurry, only 1 left in stock!
£67.46 ex VAT
£80.95 inc VAT
Qty
Express delivery Order within the next 13 hours for delivery tomorrow
Standard delivery Delivered within 3 working days

Description

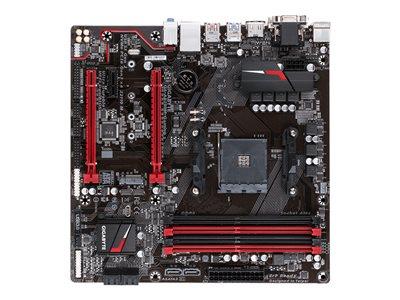

Gigabyte GA-AB350M-Gaming 3 Motherboard

  • Supports New Generation AMD Ryzen™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Fast 2 USB 3.1 Gen 2 with USB Type-A
  • Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
  • Smart Fan 5 features 5 Temperature Sensors and 3 Hybrid Fan Headers
  • GIGABYTE UEFI DualBIOS™
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Smart Fan 5

    With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
  • Hybrid fan pin headers

    Hybrid fan headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or voltage mode.
  • Anti-sulfur resistor design

    Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an anti-sulfur design, GIGABYTE makes these motherboards extremely durable.
  • High-quality audio design

    Delivers high-quality sound resolution and sound expansion to create realistic sound effects for professional gamers.
  • Humidity protection

    There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a PCB technology that repels moisture caused by humid and damp conditions.

Specifications

Summary

Product Description
Gigabyte GA-AB350M-Gaming 3 - 1.0 - motherboard - micro ATX - Socket AM4 - AMD B350 FCH
Product Type
Motherboard - micro ATX
Chipset Type
AMD B350 FCH
Processor Socket
1 x Socket AM4
Compatible Processors
Ryzen
Max RAM Size
64 GB
RAM Supported
4 DIMM slots - DDR4 unbuffered
Storage Ports
6 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports
USB 3.1 Gen 1, USB 3.1 Gen 2 2 x USB 3.1 Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)
Max Allocated RAM Size
2 GB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet


Detail

General

Product Type
Motherboard - micro ATX
Chipset Type
AMD B350 FCH
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen

Supported RAM

Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture

Graphics

Max Allocated RAM Size
2 GB

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio

LAN

Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 288-pin , 1 x PCIe 3.0 x16 , 1 x PCIe 2.0 x1 , 1 x PCIe 2.0 x16 (x4 mode)
Storage Interfaces
SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 , SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces
1 x LAN (Gigabit Ethernet) , 2 x USB 3.1 Gen 2 , 1 x PS/2 keyboard / mouse , 1 x audio line-in - mini-jack , 1 x audio line-out - mini-jack , 1 x microphone - mini-jack , 1 x DVI-D , 1 x HDMI , 4 x USB 3.1 Gen 1 , 2 x USB 2.0 , 1 x VGA
Internal Interfaces
4 x USB 2.0 - header , 2 x USB 3.1 Gen 1 - header , 1 x audio - header , 1 x SPDIF out - header , 1 x serial - header , 1 x parallel - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware Features
Q-Flash, AutoGreen, On/Off Charge, Ultra Durable, GIGABYTE Ambient LED, Game Boost, LED Trace Path, Audio Noise Guard, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5

Miscellaneous

Software Included
Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE 3D OSD
Compliant Standards
Plug and Play
Width
24.4 cm
Depth
24.4 cm
