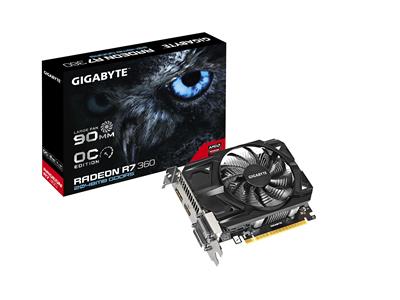

Gigabyte AMD Radeon R7 360 OC 2GB GDDR5 PCI-E Graphics Card

Gigabyte AMD Radeon R7 360 OC 2GB GDDR5 PCI-E Graphics Card

Review this product
Quicklinx: BF26WS00 Mfr#: GV-R736OC-2GD
Discontinued

Description

90mm LARGE FAN design brings ultimate cooling, efficiency, and quietness.
OC Edition with Core Clock of 1200MHz (Std: 1050MHz)
2GB GDDR5 memory and 128-bit memory interface
Ultra Durable 2 technology delivers lower temperature and longer system lifespan
OC GURU II -- Brand-new intuitive interface helps you easily modify important settings and directly update driver and BIOS.

Chipset - Radeon R7 360
Core Clock - 1200 MHz (standard: 1050 MHz)
Process Technology 28 nm
Memory Clock 6500 MHz
Memory Size 2GB
Memory Bus 128-bit
Memory Type GDDR5
Card Bus PCI-E 3.0
DirectX 12
OpenGL 4.4
PCB Form ATX
Digital max resolution 4096 X 2160
Analog max resolution 2048 x 1536
Multi-view 4
I/O - Dual-link DVI-I1/DVI-D1/HDMI1/Display Port1
Card size H=42 mm, L=159 mm, W=127 mm
Power requirement 500W (with one 6-pin external power connector)

Specifications

Summary

Product Description
Gigabyte GV-R736OC-2GD (rev. 1.0) - OC Edition - graphics card - Radeon R7 360 - 2 GB
Device Type
Graphics card
Bus Type
PCI Express 3.0 x16
Graphics Engine
AMD Radeon R7 360
Memory
2 GB GDDR5
Core Clock
1200 MHz
Effective Memory Clock
6.5 GHz
Memory Interface
128-bit
Max Resolution
4096 x 2160
Max Monitors Supported
4
Interfaces
DVI-D (dual link) , HDMI , DisplayPort , DVI-I (dual link)
API Supported
OpenGL 4.4, DirectX 12
Dimensions (WxDxH)
4.2 cm x 15.9 cm x 12.7 cm


Detail

General

Device Type
Graphics card
Bus Type
PCI Express 3.0 x16
Graphics Engine
AMD Radeon R7 360
Core Clock
1200 MHz
Process Technology
28 nm
Max Resolution
4096 x 2160
Max Monitors Supported
4
Interfaces
DVI-D (dual link) , HDMI , DisplayPort , DVI-I (dual link)
API Supported
OpenGL 4.4, DirectX 12
Features
Ultra Durable 2, GIGABYTE WINDFORCE cooling design, solid state capacitors, OC Guru II, GIGABYTE custom-designed 90 mm cooler

Memory

Size
2 GB
Technology
GDDR5 SDRAM
Effective Clock Speed
6.5 GHz
Bus Width
128-bit

System Requirements

Required Power Supply
500 W
Additional Requirements
Two 6-pin power connectors

Miscellaneous

Software Included
OC Guru ll
Width
4.2 cm
Depth
15.9 cm
Height
12.7 cm
