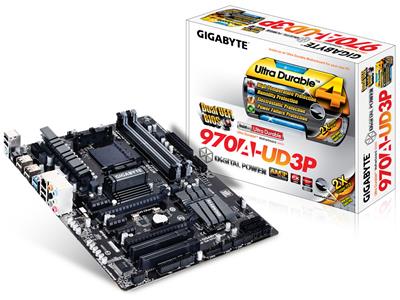

The 970A-UD3P motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the Gigabyte 333 onboard acceleration technologies. Featuring the USB 3.0 controller, AMD 900 series motherboards allow users to take advantage of super fast USB transfer rates of up to 5 Gbps, delivering 10x faster data transfer compared to USB 2.0. Utilizing the industry's first Serial ATA revision 3.0 solution via AMD SB950 chipset, Gigabyte AMD 900 series motherboards offer native 6 ports of next generation high speed data storage devices support with data transfer speeds of up to 6 Gbps with RAID 0, 1, 5, 10. The AMD 900 series motherboards introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices.

• Supports AMD AM3+ FX / AM3 Phenom™ II, Athlon™ II series Processors
• GIGABYTE Ultra Durable™ 4 Technology
• GIGABYTE Digital Power Engine
• 8+2 phase CPU VRM power design for AMD high-TDP CPU support
• GIGABYTE UEFI DualBIOS™
• 2-way CrossFire™ Support
• VIA 2021 with High Quality 108dB SNR HD audio
• GIGABYTE On/Off Charge™ for USB devices
• 4 USB 3.0 ports with GIGABYTE 3x USB power
• 6 SATA3 ports with RAID support
• GbE LAN with high ESD Protection

GIGABYTE Digital Power Engine
GIGABYTE Ultra Durable motherboards take advantage of an exclusive Digital PWM controller array, to deliver maximum and stable power to latest processors. Using digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. This Digital Power system, with Precise Auto Voltage Compensation to make real-time adjustments and deliver a steady flow of power to the system, no matter the loading. This all new, digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE motherboard.

GIGABYTE Ultra Durable™ 4 – Insist on an Ultra Durable Motherboard
GIGABYTE Ultra Durable™ 4 motherboards embrace a range of exclusive technologies that guarantee DIY PC builders the absolute best protection for their PC, with built-in features that prevent common malfunction threats.

UEFI DualBIOS™ Technology
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

Multi-display support with AMD CrossFire
Flexible graphics capabilities - Up to 2 VGA cards are supported for 2 way AMD CrossFire™ (running at x16, x4 bandwidth), delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution

108dB Signal-to-Noise ratio playback
GIGABYTE motherboards feature higher capability audio solution with 108dB Signal-to-Noise ratio (SNR) playback quality to deliver high-performance, multi-channel HD audio. SNR is a comparison of the amount of signal to the amount of noise such as hiss present in the signal (expressed in Decibels). A higher SNR equals a better audio experience. For example, 108dB, is a high audio specification, as this means the audio signal is 108dB higher than the level of the noise.

Get Ready for New Generation of 32nm AMD AM3+ CPU
GIGABYTE's AMD motherboards are ready to support new generation of 32nm AMD AM3+ multi-core processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 8+2 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
