Description
Designed for data centers needing remote site management, the Switched ePDU provides remote power monitoring of both voltage and current. The current is also displayed on a local two-digit current meter. The control interface is highly customizable with multiple functions and flexibility to send either SNMP traps or e-mail alerts.
-
Efficient power distribution
The Eaton ePDU Switched model is designed for efficient power distribution, ensuring your PC and other devices remain powered with reliability. -
Remote management capability
Equipped with an RS-232 remote management interface, this power distribution unit allows for convenient remote management, enabling adjustments and monitoring without physical presence.
Specifications
Summary
- Product Description

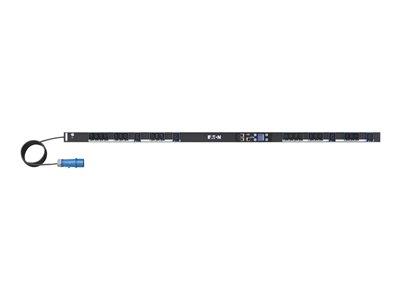

- Eaton ePDU Switched - power distribution unit
- Device Type
- Power distribution unit - rack-mountable
- Rack Size
- 0U
- Input Connectors
- 1 x power IEC 60309 16A
- Output connectors
- 20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
- Networking
- Ethernet 10/100, RS-232
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 160.4 cm
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 0U
Power Device
- Input Connectors
- 1 x power IEC 60309 16A
- Power Output Connectors Details
- 20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- Power cable - integrated
- Features
- LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 160.4 cm
