Description

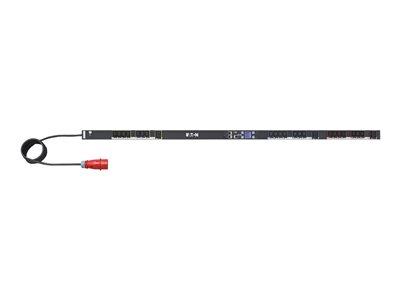

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds, and includes kWh, peak power and current draw. Clearly view and understand the consumption of individual devices powered over A and B feeds and see available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
-
Efficient management
Equipped with Ethernet 10/100 and RS-232 interfaces, this power distribution unit allows for seamless management over networks, ensuring your power distribution is monitored and managed efficiently without the need for physical intervention. -
Advanced monitoring
Features such as current meter and voltage monitoring provide real-time insights into power usage and performance, enabling proactive management of power distribution to prevent overloads and optimize energy consumption. -
Rack-mountable design
The Eaton ePDU G3 Metered Outlet's rack-mountable form factor makes it an ideal solution for space-constrained environments, allowing for a tidy and organized setup within PC compatible systems.
Specifications
Summary
- Product Description
- Eaton ePDU G3 Metered Outlet - power distribution unit
- Device Type
- Power distribution unit - rack-mountable
- Rack Size
- 0U
- Input Wiring
- 3-phase
- Input Connectors
- 1 x power IEC 60309 16A
- Output connectors
- 21 x power IEC 60320 C13 , 3 x power IEC 60320 C19
- Networking
- Ethernet 10/100, RS-232
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 160.4 cm
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 0U
Power Device
- Input Wiring
- 3-phase
- Input Connectors
- 1 x power IEC 60309 16A
- Power Output Connectors Details
- 21 x power IEC 60320 C13 , 3 x power IEC 60320 C19
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- Power cable - integrated
- Features
- LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 160.4 cm
