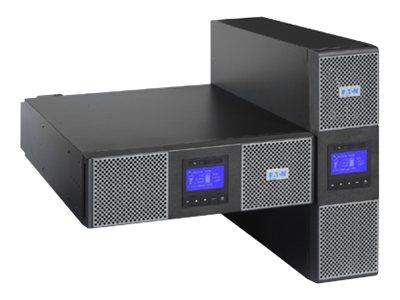

Eaton 9PX 22Ki or 11Ki Redundant RT15U Netpack

Eaton 9PX 22Ki or 11Ki Redundant RT15U Netpack

Review this product
Quicklinx: CBNRWS00 Mfr#: 9PXM22KiRTN
Ordered upon request
£7,901.87 ex VAT
£9,482.24 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Eaton 9PX UPS provides energy efficient power protection for small & medium Datacenters, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Specifications

Summary

Product Description
Eaton 9PXM22KiRTN - UPS - 22000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
19" - 6U
Input Voltage
AC 200/208/220/230/240/250 V
Output Voltage
AC 200/208/220/230/240/250 V ± 1%
Power Capacity
22000 VA
Power Redundancy
Yes
Input Connectors
Hardwire
Output connectors
4 x power IEC 60320 C19 , 1 x hardwire
Battery
Expandable
Battery Form Factor
Plug-in module
Batteries Qty
2
Networking
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Included Accessories
Rack mounting rails
System Requirements
Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008
Dimensions (WxDxH)
44 cm x 70 cm x 26 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Battery Enclosure Type
Plug-in module
Height (Rack Units)
6U
Rack Size
19"

Power Device

UPS Technology
On-line
Supported Power Modules Qty
12
Power Redundancy
Yes
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 176 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Hardwire
Power Output Connectors Details
4 x power IEC 60320 C19 , 1 x hardwire
Output Voltage
AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz
Power Capacity
22000 VA
Power Capacity (of Single Unit)
11000 VA
Surge Suppression
Yes

Battery

Type
Expandable
Quantity
2

Networking

Remote Management Interface
Ethernet 10/100, RS-232, USB
Remote Management Protocol
SNMP 1, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI

Expansion / Connectivity

Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9) , 1 x USB - 4 pin USB Type B , 1 x EPO (emergency power off) , 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x Expansion Slot

Miscellaneous

Included Accessories
Rack mounting rails
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, Parallel Capability, built-in maintenance bypass, LED indicators, deep discharge protection, automatic self-test
Compliant Standards
FCC Class A certified, UL, TUV, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2

Software / System Requirements

Software Included
Intelligent Power Software Suite
OS Required
Linux, Apple MacOS X, Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008

Environmental Standards

ENERGY STAR
Yes

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
50 dBA

Dimensions & Weight

Width
44 cm
Depth
70 cm
Height
26 cm
