Description

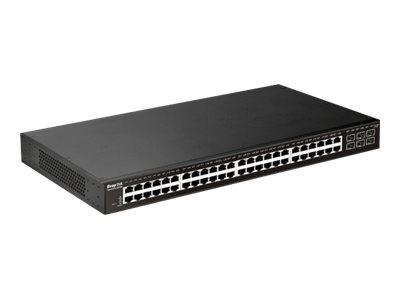

DrayTek VigorSwitch G2500 is a Layer 2 Managed Gigabit switch. It has 44x Gigabit Ethernet ports, 4x GbE/SFP combo ports, 2x SFP ports, 1x console port, and enterprise-level features to help businesses to improve network security and stability.
-
Auto surveillance VLAN
Recognize traffic from IP cameras and IP phones automatically and add CoS tag for QoS prioritization. -
QoS (Quality of Service)
Improve the performance of critical traffic by prioritizing the traffic with CoS, DSCP, and IP Precedence tag. -
IP conflict prevention
Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. -
Access Control
VigorSwitch G2500 supports ACL by IP/MAC and 802.1x port access control with RADIUS to filter unauthorized hosts. -
IPv6 ready
VigorSwitch G2500 supports IPv6 by offering MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver. -
Multiple Admin accounts
Multiple Admin accounts with two levels of administrator privilege. -
Central switch management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches. Learn more -
Energy-efficient Ethernet
Compliant with IEEE 802.3az to reduce power consumption.
Specifications
Summary
- Product Description
- Draytek VigorSwitch G2500 - switch - 50 ports - Managed - rack-mountable
- Device Type
- Switch - 50 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 44 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x SFP
- Performance
- Switching capacity: 56 Gbps , Forwarding rate: 41.7 Mpps , Packet buffer size: 12 Mbit
- Capacity
- Multicast groups: 256 , Total link aggregation groups: 16 , Links per group: 8 , ACL entries: 512
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD, MSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, RSTP
- Features
- Flow control, DHCP support, auto-negotiation, trunking, load balancing, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, SSH support, MLD snooping, reset button, IPv4 support, fanless, LACP support, LLDP support, LACP, Traffic Control, port based access control, MVR, Multicast filtering function, CoS, SP, DSCP support, Protocol-based VLANs support, IP source guard, ARP inspection, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, protected ports, EEE, WRR, VLAN Tagging, port-based VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3q, IEEE 802.1az
- Dimensions (WxDxH)
- 44.1 cm x 27 cm x 4.5 cm
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Switch - 50 ports - Managed
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 44 x 10/100/1000 + 4 x combo Gigabit SFP + 2 x SFP
- Performance
- Switching capacity: 56 Gbps , Forwarding rate: 41.7 Mpps , Packet buffer size: 12 Mbit
- Capacity
- Multicast groups: 256 , Total link aggregation groups: 16 , Links per group: 8 , ACL entries: 512
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Routing Protocol
- IGMPv2, IGMPv3, MLDv2, MLD, MSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, TR-069, RSTP
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- Flow control, DHCP support, auto-negotiation, trunking, load balancing, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, SSH support, MLD snooping, reset button, IPv4 support, fanless, LACP support, LLDP support, LACP, Traffic Control, port based access control, MVR, Multicast filtering function, CoS, SP, DSCP support, Protocol-based VLANs support, IP source guard, ARP inspection, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, protected ports, EEE, WRR, VLAN Tagging, port-based VLAN
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3q, IEEE 802.1az
- Status Indicators
- Port transmission speed, power, system, link/activity
Expansion / Connectivity
- Interfaces
- 44 x 1000Base-T RJ-45 , 4 x Gigabit LAN RJ-45/SFP , 1 x console RJ-45 management , 2 x Gigabit LAN SFP
Power
- Power Device
- Internal power supply
Miscellaneous
- Rack Mounting Kit
- Included
Dimensions & Weight
- Width
- 44.1 cm
- Depth
- 27 cm
- Height
- 4.5 cm
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
