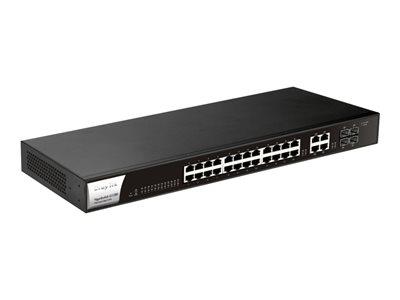

DrayTek VigorSwitch G1280 24-port Smart Gigabit Ethernet Switch

DrayTek VigorSwitch G1280 24-port Smart Gigabit Ethernet Switch

Review this product
Quicklinx: DYMPWS00 Mfr#: VSG1280-K
Type: Gigabit Ethernet
Ports: 24
Ordered upon request
£154.44 ex VAT
£185.32 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

VigorSwitch G1280 is designed for SOHO and small business network that runs various network applications. The Gigabit Ethernet ports are perfect for a network with wireless AP, IP phones, and IP surveillance.

  • LAN management

    VigorSwitch G1280 offers features that help to build a secure business network, such as VLAN, port isolation, and DoS defense. While allowing visitors to connect to the network for Internet access, these features help to block the visitors' access to business network resources and protect the network from being exhausted by malicious traffic.
  • Voice VLAN to improve call quality

    The voice VLAN feature allows VigorSwitch G1280 to automatically identify the traffic from a VoIP device and assign their source port to a separate VLAN. This allows the switch to efficiently give VoIP traffic a higher priority over others, thus to ensure better call quality.
  • Easy setup & monitoring

    VigorSwitch G1280 has adopted an easy interface design which will make configuration and management much easier. The dashboard shows the status of the system and each of LAN ports at a glance.

Specifications

Summary

Product Description
Draytek VigorSwitch G1280 - switch - 24 ports - smart - rack-mountable
Device Type
Switch - 24 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x combo Gigabit Ethernet/Gigabit SFP
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, SSH, CLI, TR-069
Features
Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, event log, Access Control List (ACL) support, Quality of Service (QoS), reset button, IPv4 support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, port isolation, Class of Service (CoS), DiffServ Code Point (DSCP) support, cable test, LLDP-MED, Unknown Storm Control
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 120/230 V
Dimensions (WxDxH)
44.1 cm x 19.7 cm x 4.5 cm
Weight
2.6 kg
Manufacturer Warranty
2 years warranty


Detailed Specification

General

Device Type
Switch - 24 ports - smart
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x combo Gigabit Ethernet/Gigabit SFP
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, SSH, CLI, TR-069
Features
Flow control, auto-negotiation, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, event log, Access Control List (ACL) support, Quality of Service (QoS), reset button, IPv4 support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, port isolation, Class of Service (CoS), DiffServ Code Point (DSCP) support, cable test, LLDP-MED, Unknown Storm Control
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3az
Status Indicators
Port transmission speed, power, system, link/activity

Expansion / Connectivity

Interfaces
24 x 1000Base-T RJ-45 , 4 x Gigabit LAN SFP , 4 x Gigabit LAN RJ-45

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V
Power Consumption Operational
453.3 Watt

Miscellaneous

Rack Mounting Kit
Included

Dimensions & Weight

Width
44.1 cm
Depth
19.7 cm
Height
4.5 cm
Weight
2.6 kg

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
