Description

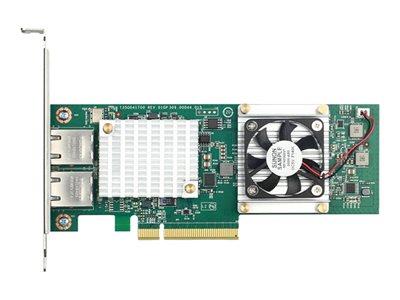

Add 10 Gigabit connectivity to your server or high-powered workstation with the D-Link DXE-820T Dual Port 10 Gigabit Ethernet PCIe Adapter. It is a high performance network adapter which combines 10GBase-T with high-speed PCI Express 2.0 x8 interface.
-
Advanced features and security
The card features onboard screening of 802.1Q VLAN tagged Ethernet frames, allowing you to assign multiple subnets to each server and isolate devices within each VLAN from the rest of the network for better traffic control and security. With support for advanced features such as 802.3x Flow Control, Jumbo Frames, and SNMP for network management, the DXE-820T can easily interoperate with your current networking equipment. -
Performance and reliability
The DXE-820T increases network throughout by utilizing PCI Express bus architecture. With Smart Load Balancing the DXE-820T configures multiple adapters to work as a team, sharing traffic and ensuring data reliability. This both creates a faster network and provides fault tolerance resulting in a stable and efficient network. -
Checksum offloading
The DXE-820T features TCP, UDP, and IP checksum offloading functionality, which transfers the checksum processing tasks from the computer's CPU to the network card. The DXE-820T's ability to handle the checksum processing means that the CPU's processing power can be used for other tasks while still achieving 20 Gbps network speeds.
Specifications
Summary
- Product Description
- D-Link DXE-820T - network adapter - PCIe 2.0 x8 / PCIe x16 - 10Gb Ethernet x 2
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 2.0 x8 / PCI Express x16
- Bus Voltage
- 3.3 V
- Ports
- 10Gb Ethernet x 2
- Dimensions (WxDxH)
- 12.09 cm x 18.1 cm x 2.16 cm
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- 10 GigE
- Data Transfer Rate
- 10 Gbps
- Compliant Standards
- IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3an, IEEE 802.3az
- System Requirements
- Microsoft Windows Server 2008 x86 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012, Oracle Solaris 11 11/11
- Designed For
- D-Link Data Center 10GbE Top-of-Rack Switch DXS-3600; DXS 1100-16SC, 1210-12SC, 1210-16TC, 3400-24SC, 3400-24TC, 3600-16S
Detailed Specification
General
- Device Type
- Network adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 2.0 x8 / PCI Express x16
- Bus Voltage
- 3.3 V
Networking
- Ports
- 10Gb Ethernet x 2
- Connectivity Technology
- Wired
- Cabling Type
- Ethernet 10GBase-T
- Data Link Protocol
- 10 Gigabit Ethernet
- Data Transfer Rate
- 10 Gbps
- Status Indicators
- Port transmission speed, active, link/activity
- Features
- Flow control, Quality of Service (QoS), Jumbo Frames support, Receive Side Scaling (RSS), NIC Partitioning (NPAR), Energy Efficient Ethernet, 96KB packet buffer, adaptive routing, Class of Service (CoS), Smart Load Balancing (SLB)
- Compliant Standards
- IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3an, IEEE 802.3az
Expansion / Connectivity
- Interfaces
- 1 x 10GBase-T - RJ-45
Miscellaneous
- Compliant Standards
- C-Tick, FCC
Software / System Requirements
- OS Required
- Microsoft Windows Server 2008 x86 Edition, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2008 R2 x64 Edition, Microsoft Windows Server 2012, Oracle Solaris 11 11/11
Dimensions & Weight
- Width
- 12.09 cm
- Depth
- 18.1 cm
- Height
- 2.16 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- D-Link Data Center 10GbE Top-of-Rack Switch DXS-3600 , D-Link DXS 1100-16SC, 1210-12SC, 1210-16TC, 3400-24SC, 3400-24TC, 3600-16S
