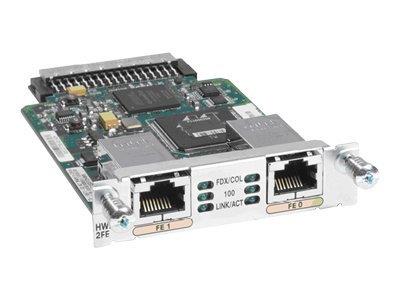

Cisco Two 10/100 routed port HWIC

Cisco Two 10/100 routed port HWIC

Review this product
Quicklinx: 65JMWS00 Mfr#: HWIC-2FE=
Wired / Wireless: Wired
Protocol: Ethernet, Fast Ethernet
Form Factor: Plug-in module
Compatibility: PC
Type: Expansion module
Ordered upon request
£860.47 ex VAT
£1,032.56 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Cisco Fast Ethernet HWICs are singlewide interface cards that provide Cisco modular and integrated services routers with additional Layer 3 routed ports.

  • Legacy protocol transport

    Serial and synchronous/asynchronous ports are ideally suited to transport legacy traffic across a TCP/IP network, facilitating network convergence and eliminating costly separate leased lines for this traffic.
  • Dial access server

    Asynchronous HWICs can connect to external dial modems to provide low-density dial access servers.

Specifications

Summary

Product Description
Cisco High-Speed - expansion module - HWIC - 10/100 Ethernet x 2
Device Type
Expansion module
Form Factor
Plug-in module
Interface (Bus) Type
HWIC
Ports
10/100 Ethernet x 2
Dimensions (WxDxH)
7.8 cm x 12 cm x 1.9 cm
Weight
73 g
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol
10Mb LAN, 100Mb LAN
Data Transfer Rate
100 Mbps
Network / Transport Protocol
TCP/IP, L2TP, PPPoE
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x
Designed For
Cisco 1921, 1921 4-pair, 1921 ADSL2+, 1941, 2901, 2911, 2921, 2951, 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E


Detailed Specification

General

Device Type
Expansion module
Form Factor
Plug-in module
Interface (Bus) Type
HWIC

Networking

Ports
10/100 Ethernet x 2
Connectivity Technology
Wired
Cabling Type
Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol
Ethernet, Fast Ethernet
Data Transfer Rate
100 Mbps
Network / Transport Protocol
TCP/IP, L2TP, PPPoE
Status Indicators
Collision status, port duplex mode, link OK, 100M device connected, link/activity
Features
Auto-sensing per device, DHCP support, auto-negotiation, auto-uplink (auto MDI/MDI-X), IPv6 support
Compliant Standards
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x

Expansion / Connectivity

Interfaces
2 x 100Base-TX - RJ-45
Compatible Slots
1 x HWIC

Miscellaneous

Compliant Standards
TUV GS, CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, IEC950, UL 1950, VCCI Class A ITE, EN 61000-3-3, EN55024, CSA 22.2 No. 950, EN55022 Class A, EN50082-1, FCC Part 15, ICES-003 Class A, EN 300 386

Dimensions & Weight

Width
7.8 cm
Depth
12 cm
Height
1.9 cm
Weight
73 g

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90%

Compatibility Information

Designed For
Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 2901, 2901 Security Bundle, 2901 SRE Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2911, 2911 Security Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2921, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2951, 2951 Security Bundle, 2951 SRE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 3825, 3825 Branch Office in a Box Bundle, 3825 Secure WAN Optimization Bundle, 3825 Security Bundle, 3825 V3PN Bundle, 3825 Voice Bundle, 3825 Voice Security Bundle, 3825 WAN Optimization Bundle, 3845, 3845 Branch Office in a Box Bundle, 3845 Secure WAN Optimization Bundle, 3845 Security Bundle, 3845 V3PN Bundle, 3845 Voice Bundle, 3845 Voice Security Bundle, 3845 WAN Optimization Bundle, 3925, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
