Description
The Cisco 350 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 350 Series provides the ideal combination of affordability and capabilities for small businesses and helps you create a more efficient, better-connected workforce.
-
ETHERNET PORT CONFIGURATION
8-port 10/100/1000, 2 x 1G uplinks (SFP) -
POWER OVER ETHERNET
8 PoE ports with 62W total power budget, PoE, PoE+ -
CONFIGURATION & CONTROL
Stackable (4 units), on-box WebUI, CLI, SNMP, Cisco FindIT Network Manager, PnP, Auto Smartports, auto-discovery, zero-touch deployment -
L2+/L3 FEATURES
Dynamic routing, RIP, VRRP, Policy-based Routing, IGMP querier, Time-based Access Control Lists, 802.1x, Web-based Authentication, IPv6 First Hop Security, Dynamic ARP Inspection -
PEACE OF MIND
Limited-lifetime warranty, next-business-day replacement, one-year technical support, and free software fixes for the term of the warranty
Specifications
Summary
- Product Description

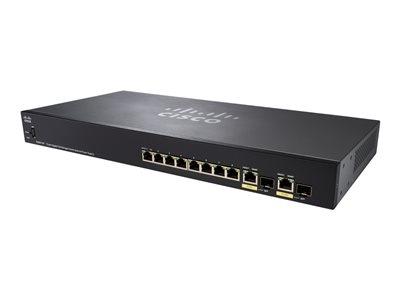

- Cisco Small Business SG355-10P - switch - 10 ports - Managed - rack-mountable
- Device Type
- Switch - 10 ports - L3 - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 62 W
- Performance
- Switching capacity: 20 Gbps , Forwarding performance (64-byte packet size): 14.88 Mpps
- Capacity
- Active VLANs: 4096
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- Static IPv4 routing, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
- Features
- Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 20.2 cm x 4.45 cm
- Weight
- 2.36 kg
- Localisation
- United Kingdom
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 10 ports - L3 - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 62 W
- Performance
- Switching capacity: 20 Gbps , Forwarding performance (64-byte packet size): 14.88 Mpps
- Capacity
- Active VLANs: 4096
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- Static IPv4 routing, CIDR
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
- Encryption Algorithm
- SSL
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, 12MB packet buffer
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 2 x 1000Base-T RJ-45/SFP , 1 x console RJ-45 management , 1 x USB management
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Cables Included
- 1 x console cable
- Rack Mounting Kit
- Included
- MTBF
- 296,426 hours
- Compliant Standards
- UL 60950, FCC Part 15 A, CSA 22.2
- Localisation
- United Kingdom
Dimensions & Weight
- Width
- 44 cm
- Depth
- 20.2 cm
- Height
- 4.45 cm
- Weight
- 2.36 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - web support - 1 year , Technical support - phone consulting - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 90% (non-condensing)
