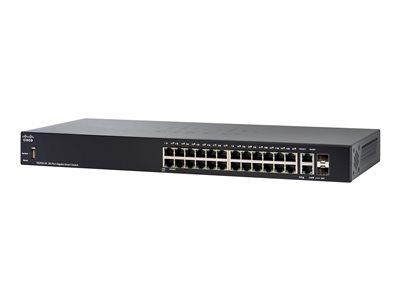

Cisco SG250-26P 26 Port Switch

Review this product
Quicklinx: D136WS00 Mfr#: SG250-26P-K9-UK
Type: Gigabit Ethernet
Ports: 26
Managed: Yes
POE: PoE+
Ordered upon request
£324.44 ex VAT
£389.32 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Cisco 250 series is the next generation of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network. These expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Auto Smartports, and flexible Power over Ethernet (PoE) Plus capability, you can deploy and configure a complete business network in minutes.

  • ETHERNET PORT CONFIGURATION

    24-port 10/100/1000, 2 x 1G combo SFP
  • POWER OVER ETHERNET

    24 PoE ports with 195W total power budget, PoE, PoE+
  • CONFIGURATION & CONTROL

    Easy-to-use GUI interface and CLI offers basic+ capabilities, SNMP, Cisco FindIT Network Manager, PnP
  • L2+ FEATURES AND SECURITY

    Static routing, VLANs, QoS, Voice VLAN, MSTP, IGMP Snooping Access Control List (ACL), 802.1X, DoS prevention, SSH/SSL
  • PEACE OF MIND

    Limited-lifetime warranty, one-year technical support, and free software fixes for the term of the warranty

Specifications

Summary

Product Description
Cisco 250 Series SG250-26P - switch - 26 ports - smart - rack-mountable
Device Type
Switch - 26 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Switching capacity: 52 Gbps , Forwarding performance (64-byte packet size): 38.69 Mpps
Capacity
MSTP instances: 8 , Active VLANs: 256 , QoS hardware queues: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMP, static IPv4 routing
Remote Management Protocol
SNMP, RMON, HTTP, HTTPS, TFTP, SCP
Features
DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), MLD snooping, reset button, LLDP support, 12MB packet buffer, Storm Control, SmartPort technology, Cisco Discovery Protocol
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Power
AC 100-240 V (50 - 60 Hz)
Dimensions (WxDxH)
44 cm x 25.7 cm x 4.4 cm
Weight
3.81 kg
Localisation
United Kingdom
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 26 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
195 W
Performance
Switching capacity: 52 Gbps , Forwarding performance (64-byte packet size): 38.69 Mpps
Capacity
MSTP instances: 8 , Active VLANs: 256 , QoS hardware queues: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9000 bytes
Routing Protocol
IGMP, static IPv4 routing
Remote Management Protocol
SNMP, RMON, HTTP, HTTPS, TFTP, SCP
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS
Features
DHCP support, BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), MLD snooping, reset button, LLDP support, 12MB packet buffer, Storm Control, SmartPort technology, Cisco Discovery Protocol
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Link/activity

Expansion / Connectivity

Interfaces
24 x 1000Base-T RJ-45 PoE+ - 195 W , 2 x 1000Base-T RJ-45/SFP , 1 x USB management

Power

Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)

Miscellaneous

Cables Included
1 x power cable
MTBF
430,341 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localisation
United Kingdom

Dimensions & Weight

Width
44 cm
Depth
25.7 cm
Height
4.4 cm
Weight
3.81 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - web support - 1 year , Technical support - phone consulting - 1 year

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
