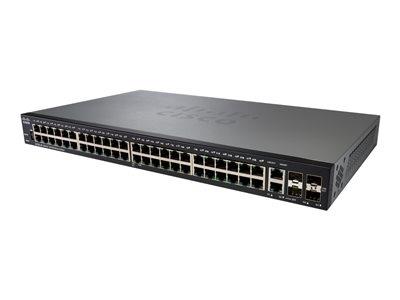

Cisco SF250-48 48 Port Small business Switch

Cisco SF250-48 48 Port Small business Switch

Review this product
Quicklinx: D0HPWS00 Mfr#: SF250-48-K9-UK
Type: Fast Ethernet
Ports: 48
Managed: Yes
Ordered upon request
£290.39 ex VAT
£348.46 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

In today's hyperconnected world, reliable access to network resources is critical to all businesses. However, you also need to invest wisely to stay competitive, knowing how to separate the essential from the extraneous and get the most value for your dollar. For investment in network infrastructure, building a solid foundation for your business is essential, but it doesn't mean you need the most advanced feature set on the market.

With Cisco 250 Series Smart Switches, you can achieve business-class network performance and security without paying for advanced network management features that you will not use. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, but low cost is a top priority, Cisco 250 Series Smart Switches provide the ideal solution.

The Cisco 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with the essential network management features you need for a solid business network. These expandable Fast Ethernet or Gigabit Ethernet switches provide basic management, security, and quality-of-service (QoS) features beyond those of an unmanaged or consumer-grade switch, at a lower cost than managed switches. And with an easy-to-use web user interface, Auto Smartports, and flexible Power over Ethernet (PoE) Plus capability, you can deploy and configure a complete business network in minutes.

  • ETHERNET PORT CONFIGURATION

    48-port 10/100M, 2 x 1G combo SFP, 2 x SFP
  • CONFIGURATION & CONTROL

    Easy-to-use GUI interface and CLI offers basic+ capabilities, SNMP, Cisco FindIT Network Manager, PnP
  • L2+ FEATURES

    Static routing, VLANs, QoS, Voice VLAN, GVRP, MSTP, and IGMP Snooping
  • SECURITY FEATURES

    Access Control List (ACL), 802.1X / RADIUS, DoS prevention, SSH/SSL
  • PEACE OF MIND

    Limited-lifetime warranty, one-year technical support, and free software fixes for the term of the warranty

Specifications

Summary

Product Description
Cisco 250 Series SF250-48 - switch - 48 ports - smart - rack-mountable
Device Type
Switch - 48 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x Gigabit SFP
Performance
Switching capacity: 17.6 Gbps , Forwarding performance (64-byte packet size): 13.1 Mpps
Capacity
MSTP instances: 8 , Active VLANs: 256 , QoS hardware queues: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI, SCP
Features
Flow control, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, reset button, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, 24 MB packet buffer, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, Head of Line Blocking Prevention, Internet Control Message Protocol (ICMP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 100-240 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 25.7 cm x 4.4 cm
Weight
3.57 kg
Localisation
United Kingdom
Manufacturer Warranty
90 days warranty


Detailed Specification

General

Device Type
Switch - 48 ports - smart
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x Gigabit SFP
Performance
Switching capacity: 17.6 Gbps , Forwarding performance (64-byte packet size): 13.1 Mpps
Capacity
MSTP instances: 8 , Active VLANs: 256 , QoS hardware queues: 4
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI, SCP
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS
Features
Flow control, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), DHCP server, reset button, fanless, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, 24 MB packet buffer, Duplicated Address Detection, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, Head of Line Blocking Prevention, Internet Control Message Protocol (ICMP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Port transmission speed, system, link/activity

Expansion / Connectivity

Interfaces
48 x 100Base-TX RJ-45 , 2 x 1000Base-T RJ-45 , 4 x 1000Base-X SFP , 1 x USB Type A management

Power

Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
24.2 Watt

Miscellaneous

Rack Mounting Kit
Included
MTBF
256,281.25 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 A
Localisation
United Kingdom

Dimensions & Weight

Width
44 cm
Depth
25.7 cm
Height
4.4 cm
Weight
3.57 kg

Manufacturer Warranty

Service & Support
Limited warranty - advance hardware replacement - 90 days - response time: 10 days

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
