Description
Cisco 1100 Series Integrated Services Routers (ISRs) are easy to deploy and manage, with cutting-edge, scalable, multicore separate data and control plane capabilities. The Cisco 1100 Series ISRs are well suited for deployment as Customer Premises Equipment (CPE) in enterprise branch offices, in service provider managed environments as well as smaller form factor and M2M use cases.
-
PORT COUNT
4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+) -
CONNECTIVITY
Gigabit WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console -
SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud -
PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services -
PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement
Specifications
Summary
- Product Description

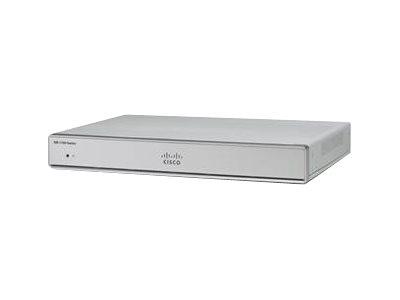

- Cisco Integrated Services Router 1111 - router - desktop
- Device Type
- Router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Encryption throughput: 250 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Features
- CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
- Compliant Standards
- IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 32.3 cm x 23 cm x 4.2 cm
- Weight
- 2.59 kg
Detailed Specification
General
- Device Type
- Router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Performance
- Encryption throughput: 250 Mbps
- Network / Transport Protocol
- IPSec, PPPoE, DHCP, DNS, L2TPv3
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
- Remote Management Protocol
- SNMP, RMON, CLI, TR-069
- Encryption Algorithm
- DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA
- Authentication Method
- RADIUS
- Features
- CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM
- Compliant Standards
- IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
- RAM
- 4 GB
- Flash Memory
- 4 GB
- Status Indicators
- Status
Expansion / Connectivity
- Interfaces
- WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP , LAN: 2 x 1000Base-T - RJ-45 , LAN: 1 x 1000Base-T (PoE+) - RJ-45 , LAN: 1 x 1000Base-T (PoE) - RJ-45 , USB 3.0: 1 x
Power
- Voltage Required
- AC 120/230 V (50/60 Hz)
Dimensions & Weight
- Width
- 32.3 cm
- Depth
- 23 cm
- Height
- 4.2 cm
- Weight
- 2.59 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 65 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
