Description
The Cisco Industrial Ethernet 2000 (IE 2000) series is a range of compact, industrially ruggedized access switches. IE 2000 series provides customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.
-
Easy deployment
Zero-touch discovery using DHCP, express setup, fast bootup time to help migrating to Ethernet environment without resistance. -
Security
Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users. -
Resiliency
Flex links for fast recovery, Cisco REP protocol for fast convergence. -
Industrial automation protocols
Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments.
Specifications
Summary
- Product Description

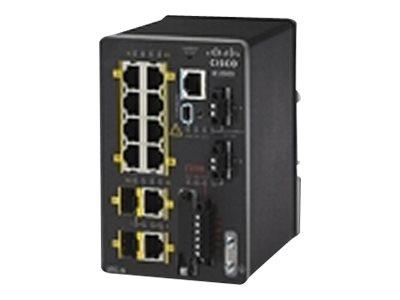

- Cisco Industrial Ethernet 2000 Series - switch - 10 ports - Managed
- Device Type
- Switch - 10 ports - Managed
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100 + 2 x combo Gigabit SFP
- Performance
- Forwarding performance (64-byte packet size): 6.5 Mpps
- Capacity
- Virtual interfaces (VLANs): 255
- MAC Address Table Size
- 8K entries
- Routing Protocol
- IGMP, static IPv4 routing
- Remote Management Protocol
- SNMP 3, HTTPS, SSH
- Features
- DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Port Security, RSPAN
- Compliant Standards
- IEEE 802.1x
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- Switch - 10 ports - Managed
- Enclosure Type
- DIN rail mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100 + 2 x combo Gigabit SFP
- Performance
- Forwarding performance (64-byte packet size): 6.5 Mpps
- Capacity
- Virtual interfaces (VLANs): 255
- MAC Address Table Size
- 8K entries
- Routing Protocol
- IGMP, static IPv4 routing
- Remote Management Protocol
- SNMP 3, HTTPS, SSH
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Port Security, RSPAN
- Compliant Standards
- IEEE 802.1x
- RAM
- 256 MB
- Flash Memory
- 64 MB
Expansion / Connectivity
- Interfaces
- 8 x 100Base-TX RJ-45 , 2 x SFP (mini-GBIC) , 2 x 1000Base-T RJ-45
- Expansion Slots
- 1 (total) / 1 (free) x SD Memory Card
Miscellaneous
- Rack Mounting Kit
- Optional
- MTBF
- 374,052 hours
- Compliant Standards
- C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, KCC, IEC 60068-2-27, IEC 60068-2-6, UL 508, FCC Part 15 A, IEC 60529 IP30, CISPR 11, CSA 22.2 No. 142, EN 61131-2, EN 61326-1, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 85 °C
