Cisco Catalyst 9300L 24-port PoE+, 4X1G uplinks, Network Essentials

Cisco Catalyst 9300L 24-port PoE+, 4X1G uplinks, Network Essentials

Review this product
Quicklinx: G2QZWS00 Mfr#: C9300L-24P-4G-E
Type: Gigabit Ethernet
Ports: 24
Managed: Yes
POE: PoE+
17 In Stock
£1,940.05 ex VAT
£2,328.06 inc VAT
Qty
Standard delivery Delivered within 3 working days
Add to regular buy list

Description

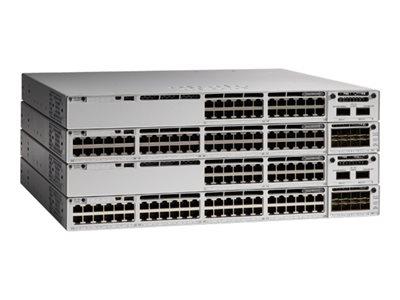

The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Specifications

Summary

Product Description
Cisco Catalyst 9300L - Network Essentials - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
505 W
Performance
Switching capacity: 56 Gbps , Stacking bandwidth: 320 Gbps , Switching capacity with stacking: 376 Gbps , Forwarding rate: 41.66 Mpps , Forwarding rate with stacking: 279.76 Mpps
Capacity
IPv4 routes: 32000 , IPv6 routes: 16000 , Multicast scale: 8000 , QoS scale entries: 5120 , ACL scale entries: 5120 , VLANs supported: 4094 , FNF entries: 64000 , Switched virtual interfaces (SVIs): 1000 , Packet buffer size: 16 MB , Virtual networks: 64
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Features
ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 4.4 cm x 40.9 cm
Weight
6.81 kg
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 24 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
505 W
Performance
Switching capacity: 56 Gbps , Stacking bandwidth: 320 Gbps , Switching capacity with stacking: 376 Gbps , Forwarding rate: 41.66 Mpps , Forwarding rate with stacking: 279.76 Mpps
Capacity
IPv4 routes: 32000 , IPv6 routes: 16000 , Multicast scale: 8000 , QoS scale entries: 5120 , ACL scale entries: 5120 , VLANs supported: 4094 , FNF entries: 64000 , Switched virtual interfaces (SVIs): 1000 , Packet buffer size: 16 MB , Virtual networks: 64
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
Encryption Algorithm
128-bit AES, 256-bit AES
Features
ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
RAM
8 GB
Flash Memory
16 GB
Built-in Devices
RFID tag
Status Indicators
Status

Expansion / Connectivity

Interfaces
24 x 1000Base-T RJ-45 PoE+ , 4 x 1000Base-X SFP uplink , 1 x network stack device , 1 x management (LAN) RJ-45 , 1 x console , 1 x USB 2.0

Power

Power Device
Internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
715 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF
346,940 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04

Dimensions & Weight

Width
44.5 cm
Depth
4.4 cm
Height
40.9 cm
Weight
6.81 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
