Description

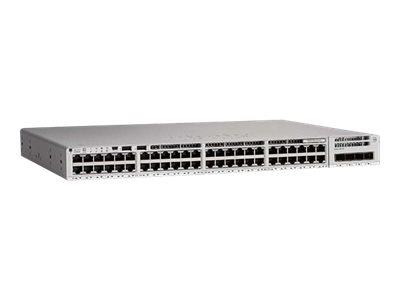

The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48T-4G-E model has 48 ports 1G data with 4x 1G SFP fixed uplinks. Licensing is required.
Specifications
Summary
- Product Description
- Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - rack-mountable
- Device Type
- Switch - 48 ports - L3 - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- Performance
- Stacking bandwidth: 80 Gbps , Switching capacity: 104 Gbps , Forwarding rate: 154.76 Mpps
- Capacity
- Virtual networks: 1 , IPv4 routes: 11000 , IPv4 routing table entries: 3000 , IPv6 routing table entries: 1500 , Multicast scale: 1000 , ACL scale entries: 1500 , FNF entries: 16000 , VLANs supported: 1024 , Switched virtual interfaces (SVIs): 512 , QoS hardware queues per port: 8
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Features
- QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Power
- AC 100-240 V (50 - 60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 4.4 cm x 28.8 cm
- Weight
- 4.35 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- Performance
- Stacking bandwidth: 80 Gbps , Switching capacity: 104 Gbps , Forwarding rate: 154.76 Mpps
- Capacity
- Virtual networks: 1 , IPv4 routes: 11000 , IPv4 routing table entries: 3000 , IPv6 routing table entries: 1500 , Multicast scale: 1000 , ACL scale entries: 1500 , FNF entries: 16000 , VLANs supported: 1024 , Switched virtual interfaces (SVIs): 512 , QoS hardware queues per port: 8
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Features
- QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- RAM
- 2 GB
- Flash Memory
- 4 GB
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 , 4 x 1000Base-X SFP uplink , 1 x network stack device , 1 x management (LAN) RJ-45 , 1 x console RJ-45
Power
- Power Device
- Internal power supply - hot-plug
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Voltage Required
- AC 100-240 V (50 - 60 Hz)
Miscellaneous
- MTBF
- 508,700 hours
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 4.4 cm
- Height
- 28.8 cm
- Weight
- 4.35 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day
Environmental Parameters
- Humidity Range Operating
- 5 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 90% (non-condensing)
