Cisco Catalyst 9200L - Network Essentials - switch - L3 - 24 x 10/

Cisco Catalyst 9200L - Network Essentials - switch - L3 - 24 x 10/

Review this product
Quicklinx: FX95WS00 Mfr#: C9200L-24T-4G-E
Type: Gigabit Ethernet
Ports: 24
Ordered upon request
£956.76 ex VAT
£1,148.11 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.
Add to regular buy list

Description

Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Specifications

Summary

Product Description

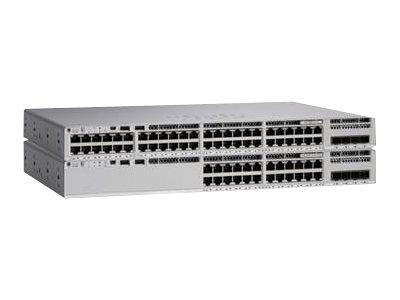

Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable
Device Type
Switch - 24 ports - L3 - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance
Stacking bandwidth: 80 Gbps , Switching capacity: 56 Gbps , Forwarding rate: 83.33 Mpps
Capacity
Virtual networks: 1 , IPv4 routes: 11000 , IPv4 routing table entries: 3000 , IPv6 routing table entries: 1500 , Multicast scale: 1000 , ACL scale entries: 1500 , FNF entries: 16000 , VLANs supported: 1024 , Switched virtual interfaces (SVIs): 512 , QoS hardware queues per port: 8
MAC Address Table Size
16000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Power
AC 100-240 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 28.8 cm x 4.4 cm
Weight
4.35 kg
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 24 ports - L3 - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance
Stacking bandwidth: 80 Gbps , Switching capacity: 56 Gbps , Forwarding rate: 83.33 Mpps
Capacity
Virtual networks: 1 , IPv4 routes: 11000 , IPv4 routing table entries: 3000 , IPv6 routing table entries: 1500 , Multicast scale: 1000 , ACL scale entries: 1500 , FNF entries: 16000 , VLANs supported: 1024 , Switched virtual interfaces (SVIs): 512 , QoS hardware queues per port: 8
MAC Address Table Size
16000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM
2 GB
Flash Memory
4 GB

Expansion / Connectivity

Interfaces
24 x 1000Base-T RJ-45 , 4 x 1000Base-X SFP uplink , 1 x network stack device , 1 x management (LAN) RJ-45 , 1 x console RJ-45

Power

Power Device
Internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Optional
Voltage Required
AC 100-240 V (50 - 60 Hz)

Miscellaneous

MTBF
531,030 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Dimensions & Weight

Width
44.5 cm
Depth
28.8 cm
Height
4.4 cm
Weight
4.35 kg

Manufacturer Warranty

Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day

Environmental Parameters

Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
