Description
The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.
-
Super secure
Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch.?? -
Always on
Catalyst 9200 series switches provide enterprise-level resiliency, analytics, and assurance to keep your business up and running seamlessly.
Specifications
Summary
- Product Description

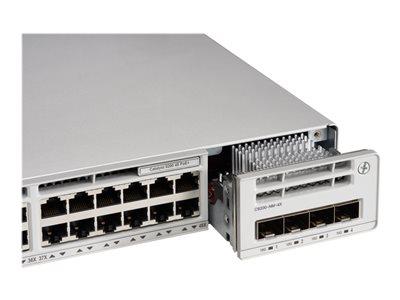

- Cisco Catalyst 9200 - Essential Edition - switch - 48 ports - smart - rack-mountable
- Device Type
- Switch - 48 ports - smart - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Wireless bandwidth: up to 48 Gbps , Switching capacity: 176 Gbps , Forwarding rate: 261.9 Mpps
- Capacity
- Virtual networks: 4 , MAC addresses: 32000 , IPv4 routes: 14000 , Indirect IPv4 routes: 4000 , Direct IPv4 routes: 10000 , IPv4 routing table entries: 4000 , IPv6 routing table entries: 2000 , Multicast scale: 1000 , ACL scale entries: 16000 , Packet buffer size: 6 MB , Flexible NetFlow entries: 16000 , VLAN IDs: 1000
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol
- NETCONF, RESTCONF
- Features
- QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
- Power
- AC 100-240 V
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 4.4 cm x 35 cm
- Weight
- 5.5 kg
- System Requirements
- Cisco IOS XE 16.9.2 or later
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - smart - stackable
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 740 W
- Performance
- Wireless bandwidth: up to 48 Gbps , Switching capacity: 176 Gbps , Forwarding rate: 261.9 Mpps
- Capacity
- Virtual networks: 4 , MAC addresses: 32000 , IPv4 routes: 14000 , Indirect IPv4 routes: 4000 , Direct IPv4 routes: 10000 , IPv4 routing table entries: 4000 , IPv6 routing table entries: 2000 , Multicast scale: 1000 , ACL scale entries: 16000 , Packet buffer size: 6 MB , Flexible NetFlow entries: 16000 , VLAN IDs: 1000
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Remote Management Protocol
- NETCONF, RESTCONF
- Features
- QoS, RSPAN, FNF, MACsec support, CoPP, Sampled NetFlow, SPAN, EEM, FHS, DNA support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
- RAM
- 4 GB
- Flash Memory
- 4 GB
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 PoE+ - 30 W
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Provided
- 1000 Watt
- Voltage Required
- AC 100-240 V
Miscellaneous
- MTBF
- 375,570 hours
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
- OS Required
- Cisco IOS XE 16.9.2 or later
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 4.4 cm
- Height
- 35 cm
- Weight
- 5.5 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
