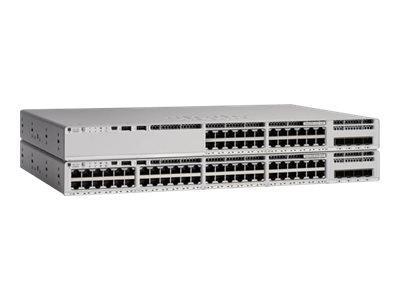

Cisco Catalyst 9200 48-port Data switch Network Essentials

Cisco Catalyst 9200 48-port Data switch Network Essentials

Review this product
Quicklinx: G2PKWS00 Mfr#: C9200-48T-E
Less than 10 in stock
£1,282.31 ex VAT
£1,538.77 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.

  • Super secure

    Get advanced security features that protect the integrity of your hardware, software, and all data that flows through the switch.??
  • Always on

    Catalyst 9200 series switches provide enterprise-level resiliency, analytics, and assurance to keep your business up and running seamlessly.

Specifications

Summary

Product Description
Cisco Catalyst 9200 - Network Essentials - switch - 48 ports - Managed - rack-mountable
Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000
Performance
Stacking bandwidth: 160 Gbps , Switching bandwidth: 176 Gbps , Forwarding rate: 261.9 Mpps
Capacity
Virtual networks: 4 , IPv4 routing table entries: 4000 , IPv6 routing table entries: 2000 , Flexible NetFlow entries: 16000 , Packet buffer size: 6 MB , VLAN IDs: 4096 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
Power
AC 120/230 V (50 - 60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 35 cm x 4.4 cm
Weight
5 kg


Detailed Specification

General

Device Type
Switch - 48 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000
Performance
Stacking bandwidth: 160 Gbps , Switching bandwidth: 176 Gbps , Forwarding rate: 261.9 Mpps
Capacity
Virtual networks: 4 , IPv4 routing table entries: 4000 , IPv6 routing table entries: 2000 , Flexible NetFlow entries: 16000 , Packet buffer size: 6 MB , VLAN IDs: 4096 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM
4 GB
Flash Memory
4 GB

Expansion / Connectivity

Interfaces
48 x 10/100/1000 Base-T RJ-45 , 1 x network stack device , 1 x management (LAN) RJ-45 , 1 x console RJ-45
Expansion Slots
1 (total) / 1 (free) x Expansion Slot

Power

Power Device
Internal power supply - hot-plug
Installed Qty
2 (max)
Power Redundancy
Optional
Power Provided
125 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)

Miscellaneous

MTBF
571,440 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35

Dimensions & Weight

Width
44.5 cm
Depth
35 cm
Height
4.4 cm
Weight
5 kg

Environmental Parameters

Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
