Description

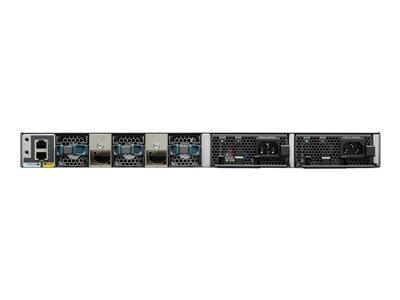

Cisco Catalyst 3650 series switches are enterprise-class, stackable access switches that provide the foundation for full wired and wireless convergence on a single platform.
Facilitate wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. Cisco Catalyst 3650 series switches are powered by the Cisco Unified Access Data Plane (UADP) ASIC and built on advanced Cisco StackWise-160 technology.
-
ETHERNET PORT CONFIGURATION
48 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports; four 1 G uplinks -
SOFTWARE
IP base feature set -
ADVANCED SECURITY
IEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection and WIPSs (wireless intrusion prevention systems) -
COMPACT
Reduced depth of 11.62 inches (29.5 cm) for shallow-depth cabinets -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description
- Cisco Catalyst 3650-48PS-S - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 390 W
- Performance
- Switching capacity: 176 Gbps , Forwarding performance: 130.95 Mpps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 48000 , Virtual interfaces (VLANs): 4094 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- RIP-1, RIP-2, EIGRP, static IP routing, RIPng
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Features
- ARP support, trunking, VLAN support, IGMP snooping, RSTP support, MSTP support, DHCP snooping, PAgP support, ACL support, QoS, RADIUS support, MLD snooping, DAI, EIGRP Stub Routing, UDLD, Rapid PVST+, LACP, RSPAN, Energy Efficient Ethernet, FNF
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 44.8 cm x 4.4 cm
- Weight
- 7.6 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 390 W
- Performance
- Switching capacity: 176 Gbps , Forwarding performance: 130.95 Mpps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 48000 , Virtual interfaces (VLANs): 4094 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- RIP-1, RIP-2, EIGRP, static IP routing, RIPng
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- ARP support, trunking, VLAN support, IGMP snooping, RSTP support, MSTP support, DHCP snooping, PAgP support, ACL support, QoS, RADIUS support, MLD snooping, DAI, EIGRP Stub Routing, UDLD, Rapid PVST+, LACP, RSPAN, Energy Efficient Ethernet, FNF
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- RAM
- 4 GB
- Flash Memory
- 2 GB
- Status Indicators
- Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 PoE+ - 30 W , 1 x USB Type A , 1 x serial (console) RJ-45 management , 1 x management (Gigabit LAN) RJ-45 management , 1 x management (mini-USB) Type B management , 4 x 1000Base-X SFP uplink
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 640 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 383,760 hours
- Compliant Standards
- CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
- Software Included
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 44.8 cm
- Height
- 4.4 cm
- Weight
- 7.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 96% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
