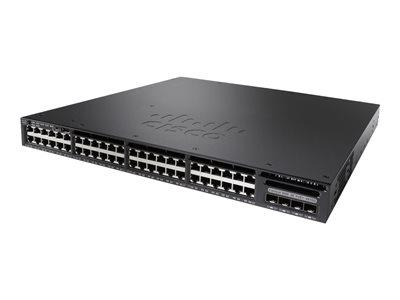

Cisco Catalyst 3650-48PD-L - Switch - Managed - 48 x 10/100/1000 (

Cisco Catalyst 3650-48PD-L - Switch - Managed - 48 x 10/100/1000 (

Review this product
Quicklinx: CYHCWS00 Mfr#: WS-C3650-48PD-L
Type: Gigabit Ethernet
Ports: 48
Managed: Yes
POE: PoE+
Stock Status: In Stock
16 in stock
£3,827.52 ex VAT
£4,593.02 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. It can help you increase wireless productivity and reduce your TCO.

  • Converged wired plus wireless access

    The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE software-based platform. With this, Cisco has pioneered a host of rich capabilities such as high availability based on stateful switchover (SSO) on stacking, granular QoS, security, and Flexible Netflow (FNF) across wired and wireless in a seamless fashion.
  • Efficient switch operation

    Cisco Catalyst 3650 series switch, designed and engineered by Cisco, provides optimum power-saving, EEE, low-power operations for industry best-in-class power management and power consumption capabilities. The Cisco Catalyst 3650 ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state.
  • Environmentally responsible

    Organizations may choose to turn off access point radios to reduce power consumption during off-peak hours. The integrated Wireless LAN controller avoids the deployment of additional devices in the network.
  • Network management tools

    The Cisco Catalyst 3650 series switch offers both a superior CLI for detailed configuration and Cisco Prime infrastructure for unified wired plus wireless management. Prime infrastructure provides day 0 and ongoing provisioning, ongoing monitoring and maintenance, configuration templates, and device and user 360-degree views and serves as the FNF collector for user traffic views.
  • Superior QoS

    The Cisco Catalyst 3650 series offers Gigabit Ethernet speed with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for cross-stack marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.

Specifications

Summary

Product Description
Cisco Catalyst 3650-48PD-L - switch - 48 ports - Managed - rack-mountable
Device Type
Switch - 48 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
390 W
Performance
Switching capacity: 176 Gbps , Forwarding performance: 130.95 Mpps
Capacity
IPv4 routes: 24000 , Virtual interfaces (VLANs): 255 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
Static IP routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Features
Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Optional
Dimensions (WxDxH)
44.5 cm x 44.8 cm x 4.4 cm
Weight
7.6 kg
Manufacturer Warranty
Limited lifetime warranty


Detail

General

Device Type
Switch - 48 ports - Managed - stackable
Enclosure Type
Desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
390 W
Performance
Switching capacity: 176 Gbps , Forwarding performance: 130.95 Mpps
Capacity
IPv4 routes: 24000 , Virtual interfaces (VLANs): 255 , Switched virtual interfaces (SVIs): 1000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
Static IP routing
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method
Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM
4 GB
Flash Memory
2 GB
Status Indicators
Port transmission speed, port duplex mode, system, active, status, PoE

Expansion / Connectivity

Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W , 1 x USB Type A , 1 x serial (console) RJ-45 management , 1 x management (Gigabit LAN) RJ-45 management , 1 x management (mini-USB) Type B management , 2 x 1000Base-X SFP uplink , 2 x 10GBase-X SFP+ uplink
Expansion Slots
1 (total) / 1 (free) x Stacking Module

Power

Power Device
Internal power supply - hot-plug
Installed Qty
1 (installed) / 2 (max)
Power Redundancy
Optional
Power Redundancy Scheme
1+1 (with optional power supply)
Power Provided
640 Watt
Voltage Required
AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit
Included
MTBF
383,760 hours
Compliant Standards
CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A

Software / System Requirements

Software Included
Cisco IOS LAN Base

Dimensions & Weight

Width
44.5 cm
Depth
44.8 cm
Height
4.4 cm
Weight
7.6 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days

Environmental Parameters

Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 96% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
