Description
The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. It can help you increase wireless productivity and reduce your TCO.
-
ETHERNET PORT CONFIGURATION
24 10/100/1000 Gigabit Ethernet (GbE) ports; four 1 G uplinks -
SOFTWARE
IP base feature set -
ADVANCED SECURITY
IEEE 802.1x, DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard and control plane protection and WIPSs (wireless intrusion prevention systems) -
COMPACT
Reduced depth of 11.62 inches (29.5 cm) for shallow-depth cabinets -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description

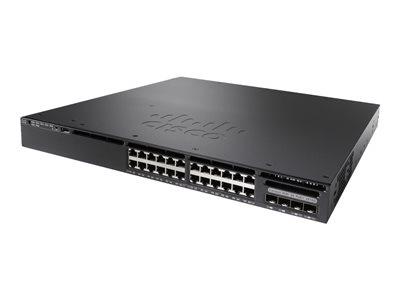

- Cisco Catalyst 3650-24TS-S - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x SFP
- Performance
- Switching capacity: 88 Gbps , Forwarding performance: 65.47 Mpps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 24000 , Virtual interfaces (VLANs): 1000 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, static IP routing, RIPng
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Features
- Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, RSTP support, MSTP support, DHCP snooping, PAgP support, ACL support, QoS, RADIUS support, MLD snooping, DAI, EIGRP Stub Routing, UDLD, Rapid PVST+, LACP, RSPAN, Energy Efficient Ethernet, FNF
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 44.8 cm x 4.4 cm
- Weight
- 6.87 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x SFP
- Performance
- Switching capacity: 88 Gbps , Forwarding performance: 65.47 Mpps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 24000 , Virtual interfaces (VLANs): 1000 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, static IP routing, RIPng
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, RSTP support, MSTP support, DHCP snooping, PAgP support, ACL support, QoS, RADIUS support, MLD snooping, DAI, EIGRP Stub Routing, UDLD, Rapid PVST+, LACP, RSPAN, Energy Efficient Ethernet, FNF
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
- RAM
- 4 GB
- Flash Memory
- 2 GB
- Status Indicators
- Port transmission speed, port duplex mode, system, active, status
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 , 1 x USB Type A , 1 x serial (console) RJ-45 management , 1 x management (Gigabit LAN) RJ-45 management , 1 x management (mini-USB) Type B management , 4 x 1000Base-X SFP uplink
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 250 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 661,800 hours
- Compliant Standards
- CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
- Software Included
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 44.8 cm
- Height
- 4.4 cm
- Weight
- 6.87 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 96% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
