Description
Converge your wired and wireless network. Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. With 3650 switches, your network is ready for the mobile devices and applications it needs to support.
-
Robust performance
With a switching capacity of 472 Gbps and forwarding performance of 351.19 Mpps, the Cisco Catalyst 3650-12X48UR-L ensures efficient data handling for demanding network environments. -
Comprehensive connectivity
Equipped with 36 UPOE ports, 12 multi-gigabit UPOE ports, and 8 10 Gigabit SFP+ uplink ports, this switch offers versatile connectivity options for a wide range of devices and network layouts. -
Advanced network security
Features like Access Control List (ACL) support, Secure Shell (SSH), and RADIUS support provide a secure network environment by protecting against unauthorized access and ensuring data privacy. -
Efficient power management
The UPOE capability delivers up to 60 W per port, supporting energy-efficient operation of devices like VoIP phones, wireless access points, and surveillance cameras without the need for additional power supplies. -
Reliable operation
Designed for continuous operation with an MTBF of 201,680 hours and support for hot-plug power supplies, ensuring minimal downtime and maximum reliability for critical network infrastructures.
Specifications
Summary
- Product Description

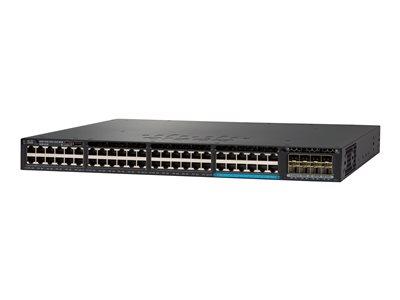

- Cisco Catalyst 3650-12X48UR-L - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 8 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- UPOE
- PoE Budget
- 660 W
- Performance
- Switching capacity: 472 Gbps , Forwarding performance: 351.19 Mpps , Stacking bandwidth: 160 Gbps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 24000 , Virtual interfaces (VLANs): 4094 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing, RIPng
- Features
- Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, VRF-Lite, MLD snooping, DAI, Cisco StackWise Technology, URPF, UDLD, Rapid PVST+, SRR, LLDP support, LACP, MAC Address Notification, RSPAN, HSRP support, Energy Efficient Ethernet, SPQ, CoS, FNF, DSCP support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- Power
- AC 120/230 V (50 - 60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 48.6 cm x 4.4 cm
- Weight
- 8.08 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 8 x 10 Gigabit SFP+ (uplink)
- Power Over Ethernet (PoE)
- UPOE
- PoE Budget
- 660 W
- Performance
- Switching capacity: 472 Gbps , Forwarding performance: 351.19 Mpps , Stacking bandwidth: 160 Gbps
- Capacity
- IPv4 routes: 24000 , NetFlow entries: 24000 , Virtual interfaces (VLANs): 4094 , Switched virtual interfaces (SVIs): 1000
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing, RIPng
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, VRF-Lite, MLD snooping, DAI, Cisco StackWise Technology, URPF, UDLD, Rapid PVST+, SRR, LLDP support, LACP, MAC Address Notification, RSPAN, HSRP support, Energy Efficient Ethernet, SPQ, CoS, FNF, DSCP support
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
- RAM
- 4 GB
- Flash Memory
- 4 GB
- Status Indicators
- Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
- Interfaces
- 36 x 1000Base-T RJ-45 UPOE - 60 W , 1 x USB Type A , 1 x serial (console) RJ-45 management , 1 x management (Gigabit LAN) RJ-45 management , 1 x management (mini-USB) Type B management , 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE - 60 W , 8 x 10GBase-X SFP+
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply - hot-plug
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 1100 Watt
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 201,680 hours
- Compliant Standards
- CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 48.6 cm
- Height
- 4.4 cm
- Weight
- 8.08 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - phone consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 96% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
