Description

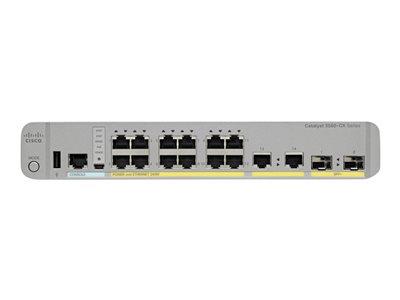

The Cisco Catalyst 3560-CX series compact switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi back haul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints. With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations.
-
ETHERNET PORT CONFIGURATION
8 10/100/1000 Gigabit Ethernet (GbE) ports; 8 PoE+ output ports; two 1 G SFP uplinks; two 1 G copper uplinks -
POWER CONSUMPTION
24.4W at 100% throughput -
FANLESS DESIGN
Silent operation -
DEFAULT SOFTWARE
IP Base (IP Services with RTU Licence) -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description
- Cisco Catalyst 3560CX-8PC-S - switch - 8 ports - Managed
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Forwarding performance (64-byte packet size): 17.9 Mpps
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
- Features
- Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.9 cm x 23.8 cm x 4.44 cm
- Weight
- 2.27 kg
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 240 W
- Performance
- Forwarding performance (64-byte packet size): 17.9 Mpps
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP
- Authentication Method
- Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, power, link OK, system
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 PoE+ , 1 x 1000Base-T RJ-45 , 1 x SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 25.4 Watt
Miscellaneous
- MTBF
- 569,530 hours
- Compliant Standards
- FCC Class A certified, UL, TUV GS, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CB, AS/NZ 3548 Class A, FCC Part 15, CSA C22.2 No. 60950-00, MIC
Software / System Requirements
- Software Included
- Cisco IOS IP Base
Dimensions & Weight
- Width
- 26.9 cm
- Depth
- 23.8 cm
- Height
- 4.44 cm
- Weight
- 2.27 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
