Description

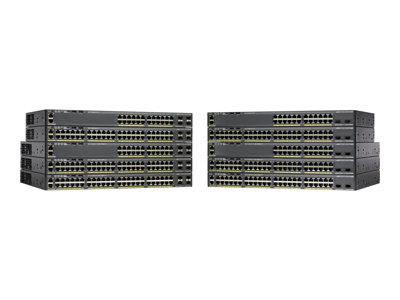

Cisco Catalyst 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.
-
Robust performance
With a switching capacity of 216 Gbps and forwarding performance capable of processing 107.1 million packets per second, this device ensures efficient data flow and high-speed connectivity for demanding network environments. -
Comprehensive connectivity
Equipped with 48 10/100/1000 (PoE+) ports and 4 Gigabit SFP ports, this switch offers extensive connectivity options for a wide range of devices and applications, supporting both power and data over Ethernet. -
Advanced network security
Features such as Kerberos, RADIUS, Secure Shell (SSH), and TACACS+ provide multiple layers of network security, safeguarding against unauthorized access and ensuring secure communication channels. -
Enhanced network management
Support for SNMP, RMON, HTTP, and CLI allows for versatile and comprehensive management of the network, enabling efficient monitoring, configuration, and control of network resources. -
Energy-efficient design
Incorporating Cisco EnergyWise technology and Energy Efficient Ethernet, this switch optimizes power usage, reducing operational costs and contributing to a greener network environment.
Specifications
Summary
- Product Description
- Cisco Catalyst 2960XR-48LPS-I - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 107.1 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Features
- Layer 2 switching, PoE, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IDS, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, DAI, PoE+, Cisco EnergyWise technology, UDLD, Rapid PVST+, IPv4 support, SRR, LACP, MAC Address Notification, RSPAN, layer 3 load balancing, PVRST, NetFlow, HSRP support, Energy Efficient Ethernet, MVR, SPQ, CoS, Cisco FlexStack Plus
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 40.8 cm x 4.45 cm
- Weight
- 6.4 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 107.1 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9216 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 2 switching, PoE, auto-negotiation, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IDS, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, DAI, PoE+, Cisco EnergyWise technology, UDLD, Rapid PVST+, IPv4 support, SRR, LACP, MAC Address Notification, RSPAN, layer 3 load balancing, PVRST, NetFlow, HSRP support, Energy Efficient Ethernet, MVR, SPQ, CoS, Cisco FlexStack Plus
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- : 600 MHz
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 12 ports (PoE+) / 48 ports (PoE) - 30 W , 1 x console SFP (mini-GBIC) - RJ-45 , 1 x mini-USB Type B management , 2 x USB Type A , 1 x 1000Base-TX RJ-45 management , 4 x SFP uplink
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 640 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Features
- Redundant Power System (RPS) connector
Miscellaneous
- MTBF
- 274,380 hours
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
Software / System Requirements
- Software Included
- Cisco IOS IP Lite
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 40.8 cm
- Height
- 4.45 cm
- Weight
- 6.4 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% (non-condensing)
