Description

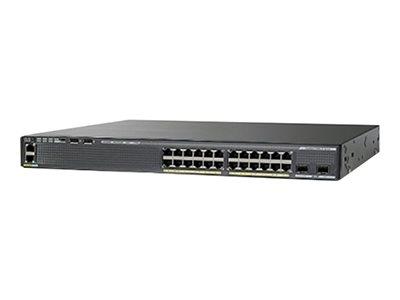

Cisco Catalyst 2960-X series switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, it enables scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.
-
Robust security
Equipped with Kerberos, RADIUS, Secure Shell (SSH), and TACACS+ authentication methods, this switch ensures secure network access and management, safeguarding against unauthorized access and threats. -
High performance
With a switching capacity of 216 Gbps and forwarding performance of 71.4 Mpps, the Cisco Catalyst 2960XR-24TS-I efficiently manages data traffic, ensuring smooth and reliable network performance. -
Enhanced manageability
Support for SNMP, RMON, CLI, and more, allows for comprehensive remote management, facilitating easier configuration, monitoring, and troubleshooting of the network. -
Advanced networking features
Features such as Layer 3 switching, NetFlow, Quality of Service (QoS), and IPv6 support, provide the tools needed for advanced network management and optimization. -
Flexible connectivity
With 24 10/100/1000 ports and 4 SFP (mini-GBIC) ports, this switch offers a variety of connectivity options for different network needs, including high-speed uplinks and management interfaces.
Specifications
Summary
- Product Description
- Cisco Catalyst 2960XR-24TS-I - switch - 24 ports - Managed - rack-mountable
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x SFP
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 71.4 Mpps
- Capacity
- Active VLANs: 1023
- Jumbo Frame Support
- 9216 bytes
- Routing Protocol
- OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Features
- Full duplex capability, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), Cisco Gigabit EtherChannel, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, Jumbo Frames support, MLD snooping, DAI, Cisco EnergyWise technology, URPF, UDLD, Rapid PVST+, SRR, DHCP relay, LACP, MAC Address Notification, RSPAN, layer 3 load balancing, PVRST, NetFlow, HSRP support, Energy Efficient Ethernet, MVR, SPQ, CoS, Cisco FlexStack Plus, DSCP support, IGMP filtering
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 40.8 cm x 4.45 cm
- Weight
- 5.9 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x SFP
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 71.4 Mpps
- Capacity
- Active VLANs: 1023
- Jumbo Frame Support
- 9216 bytes
- Max Units In A Stack
- 8
- Routing Protocol
- OSPF, RIP-1, RIP-2, HSRP, VRRP, PIM-SM, PIM-DM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
- Remote Management Protocol
- SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- Full duplex capability, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, Cisco Fast EtherChannel, VLAN support, auto-uplink (auto MDI/MDI-X), Cisco Gigabit EtherChannel, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, RADIUS support, Jumbo Frames support, MLD snooping, DAI, Cisco EnergyWise technology, URPF, UDLD, Rapid PVST+, SRR, DHCP relay, LACP, MAC Address Notification, RSPAN, layer 3 load balancing, PVRST, NetFlow, HSRP support, Energy Efficient Ethernet, MVR, SPQ, CoS, Cisco FlexStack Plus, DSCP support, IGMP filtering
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
- Processor
- : 600 MHz
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, link/activity
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 , 1 x console RJ-45 , 1 x mini-USB Type B management , 2 x USB Type A , 1 x 100Base-TX RJ-45 management , 4 x SFP uplink
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply
- Installed Qty
- 1
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Redundancy Scheme
- 1+1 (with optional power supply)
- Power Provided
- 250 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 557,320 hours
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 55022 Class A, EN 300 386
Software / System Requirements
- Software Included
- Cisco IOS IP Lite
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 40.8 cm
- Height
- 4.45 cm
- Weight
- 5.9 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% (non-condensing)
