Description
Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.
-
ETHERNET PORT CONFIGURATION
48 10/100/1000 Gigabit Ethernet ports, four 1 G SFP uplink ports -
POWER
PoE+ support with a power budget of up to 370W and Perpetual PoE; max. of 24 PoE ports (or 12 PoE+ ports) -
DEVICE MANAGEMENT
Web UI, over-the-air access via Bluetooth, CLI (command-line interface), SNMP (Simple Network Management Protocol) and RJ-45 or USB console access -
SECURITY
802.1X, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description

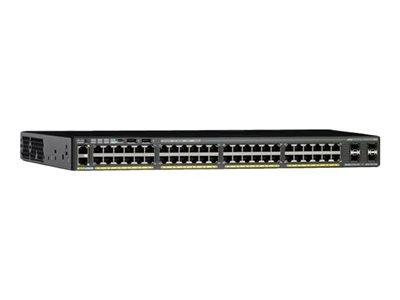

- Cisco Catalyst 2960X-48LPS-L - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - Managed - stackable
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 107.1 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9216 bytes
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Features
- Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Optional
- Dimensions (WxDxH)
- 44.5 cm x 36.8 cm x 4.5 cm
- Weight
- 5.8 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - Managed - stackable
- Enclosure Type
- Desktop, rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 370 W
- Performance
- Switching capacity: 216 Gbps , Forwarding performance (64-byte packet size): 107.1 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9216 bytes
- Max Units In A Stack
- 8
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
- Processor
- : 600 MHz
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), PoE, link/activity
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 12 ports (PoE+) / 48 ports (PoE) - 30 W , 1 x console console - RJ-45 - RJ-45 , 1 x mini-USB console - mini-USB Type B - Type B management , 2 x USB Type A , 1 x 1000Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 management , 4 x SFP (mini-GBIC) - SFP uplink
- Expansion Slots
- 1 (total) / 1 (free) x Stacking Module
Power
- Power Device
- Internal power supply
- Power Redundancy
- Optional
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Features
- Redundant Power System (RPS) connector
Miscellaneous
- MTBF
- 276,870 hours
- Compliant Standards
- CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 300386
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 36.8 cm
- Height
- 4.5 cm
- Weight
- 5.8 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 10 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 10 - 95% (non-condensing)
