Description
Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. Make your network ready for the mobile devices and applications it needs to support with the 2960L, all at a great value.
-
ETHERNET PORT CONFIGURATION
8 10/100/1000 Gigabit Ethernet ports, two 1 G SFP uplink ports -
POWER
Power budget of 67W with Perpetual PoE+ support for uninterrupted power to PoE devices, even in case of switch reboot -
MANAGEMENT
Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI; additionally, access the switch over-the-air using an external Bluetooth adapter -
SECURITY
802.1X support for connected devices, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description

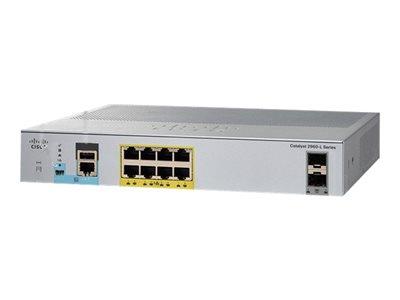

- Cisco Catalyst 2960L-8PS-LL - switch - 8 ports - Managed - rack-mountable
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 67 W
- Performance
- Switching bandwidth: 20 Gbps , Forwarding bandwidth: 10 Gbps
- Capacity
- MAC addresses: 8000 , VLANs supported: 4094 , Active VLANs: 64 , SPAN bidirectional sessions: 1
- Jumbo Frame Support
- 10240 bytes
- Routing Protocol
- IGMP
- Remote Management Protocol
- SNMP 3, CLI
- Features
- Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 26.8 cm x 24 cm x 4.4 cm
- Weight
- 2.56 kg
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x Gigabit SFP (uplink)
- Power Over Ethernet (PoE)
- PoE+
- PoE Budget
- 67 W
- Performance
- Switching bandwidth: 20 Gbps , Forwarding bandwidth: 10 Gbps
- Capacity
- MAC addresses: 8000 , VLANs supported: 4094 , Active VLANs: 64 , SPAN bidirectional sessions: 1
- Jumbo Frame Support
- 10240 bytes
- Routing Protocol
- IGMP
- Remote Management Protocol
- SNMP 3, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
- Processor
- ARM7: 800 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- System, status, PoE, link/speed
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 , 1 x console RJ-45 , 1 x console (mini-USB) Type B , 1 x USB Type A , 2 x 1000Base-X SFP uplink
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Miscellaneous
- MTBF
- 2,416,689 hours
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386
Software / System Requirements
- Software Included
- Cisco IOS LAN Lite
Dimensions & Weight
- Width
- 26.8 cm
- Depth
- 24 cm
- Height
- 4.4 cm
- Weight
- 2.56 kg
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 90%
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95%
