Description
Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. The Cisco Catalyst 2960-L supports Power over Ethernet (PoE). Make your network ready for the mobile devices and applications it needs to support with the 2960-L, all at a great value.
-
ETHERNET PORT CONFIGURATION
48 10/100/1000 Gigabit Ethernet ports, four 10 G SFP+ uplink ports -
MANAGEMENT
Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI -
OVER-THE-AIR
Access the switch over-the-air using an external Bluetooth adapter -
SECURITY
802.1X support for connected devices, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description

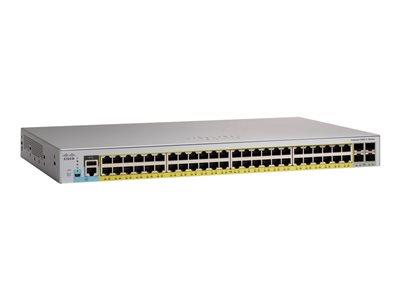

- Cisco Catalyst 2960L-48TQ-LL - switch - 48 ports - Managed - rack-mountable
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Switching bandwidth: 176 Gbps , Forwarding bandwidth: 88 Gbps , Forwarding performance (64-byte packet size): 77.38 Mpps
- Capacity
- VLANs supported: 4094 , Active VLANs: 64 , STP instances: 64 , SPAN sessions: 1
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10240 bytes
- Routing Protocol
- IGMP, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Features
- DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, ACL support, DAI, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, LACP, Port Security, Energy Efficient Ethernet, MIB, GVRP, CoS, IGMP filtering, WTD, VTP, BPDU, ICMP, STRG, NTP
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3az, IEEE 802.1AX
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 44.5 cm x 24 cm x 4.4 cm
- Weight
- 3.03 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Desktop, rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
- Performance
- Switching bandwidth: 176 Gbps , Forwarding bandwidth: 88 Gbps , Forwarding performance (64-byte packet size): 77.38 Mpps
- Capacity
- VLANs supported: 4094 , Active VLANs: 64 , STP instances: 64 , SPAN sessions: 1
- MAC Address Table Size
- 8K entries
- Jumbo Frame Support
- 10240 bytes
- Routing Protocol
- IGMP, MLDv2, MLD
- Remote Management Protocol
- SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, ACL support, DAI, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, LACP, Port Security, Energy Efficient Ethernet, MIB, GVRP, CoS, IGMP filtering, WTD, VTP, BPDU, ICMP, STRG, NTP
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3az, IEEE 802.1AX
- Processor
- ARM7: 800 MHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
- Status Indicators
- Port status, port duplex mode, system, link/speed
Expansion / Connectivity
- Interfaces
- 48 x 1000Base-T RJ-45 , 1 x console RJ-45 , 1 x console (mini-USB) Type B , 1 x USB Type A , 4 x 10GBase-X SFP+ uplink
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Miscellaneous
- MTBF
- 1,370,769 hours
- Compliant Standards
- Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6
Software / System Requirements
- Software Included
- Cisco IOS LAN Lite
Dimensions & Weight
- Width
- 44.5 cm
- Depth
- 24 cm
- Height
- 4.4 cm
- Weight
- 3.03 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 90%
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95%
