Description
The Cisco Catalyst 2960-CX Series Compact Switch help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.
-
ETHERNET PORT CONFIGURATION
8 10/100/1000 Gigabit Ethernet ports; two 1 G SFP uplinks; two 1 G copper uplinks -
POWER CONSUMPTION
18.8W at 100% throughput -
FANLESS DESIGN
Silent operation -
INCLUDED SOFTWARE
Ships with LAN Base version of Cisco IOS Software -
PEACE OF MIND
Enhanced limited lifetime warranty
Specifications
Summary
- Product Description

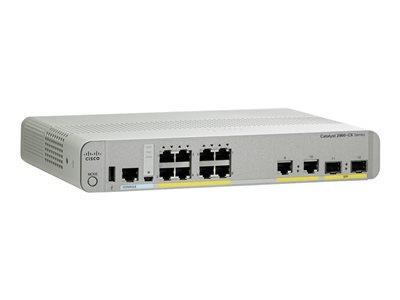

- Cisco Catalyst 2960CX-8TC-L - switch - 8 ports - Managed - rack-mountable
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Rack-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink)
- Performance
- Forwarding performance: 12 Gbps , Forwarding performance (64-byte packet size): 17.9 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9018 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Features
- BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, STP support, DHCP snooping, PAgP support, ACL support, QoS, fanless, SRR, MAC Address Notification, RSPAN, Energy Efficient Ethernet, MVR, CoS, WTD
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 26.9 cm x 21.3 cm x 4.44 cm
- Weight
- 1.72 kg
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- Switch - 8 ports - Managed
- Enclosure Type
- Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U
- Subtype
- Gigabit Ethernet
- Ports
- 8 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000 (uplink)
- Performance
- Forwarding performance: 12 Gbps , Forwarding performance (64-byte packet size): 17.9 Mpps
- Capacity
- Virtual interfaces (VLANs): 1023
- Jumbo Frame Support
- 9018 bytes
- Routing Protocol
- RIP-1, RIP-2, static IP routing
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Features
- BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, STP support, DHCP snooping, PAgP support, ACL support, QoS, fanless, SRR, MAC Address Notification, RSPAN, Energy Efficient Ethernet, MVR, CoS, WTD
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
- RAM
- 512 MB
- Flash Memory
- 128 MB
- Status Indicators
- Port status, port transmission speed, port duplex mode, system, link/activity
Expansion / Connectivity
- Interfaces
- 8 x 1000Base-T RJ-45 , 1 x console RJ-45 , 1 x mini-USB Type B management , 1 x USB Type A , 2 x 1000Base-T RJ-45 uplink , 2 x SFP uplink
Power
- Power Device
- Internal power supply
- Power Provided
- 300 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 16.7 Watt
- 80 PLUS Certification
- 80 PLUS Silver
Miscellaneous
- MTBF
- 756,260 hours
- Compliant Standards
- GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
- Software Included
- Cisco IOS LAN Base
Dimensions & Weight
- Width
- 26.9 cm
- Depth
- 21.3 cm
- Height
- 4.44 cm
- Weight
- 1.72 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - advance parts replacement - lifetime - response time: next business day , Technical support - consulting - 90 days
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Min Storage Temperature
- -25 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
