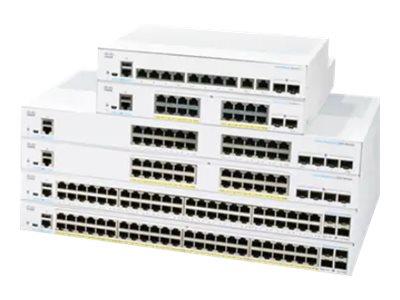

Cisco Business 350 Series 350-8P-2G - Switch - L3 - Managed

Review this product
Quicklinx: G18JWS00 Mfr#: CBS350-8P-2G-UK
Type: Gigabit Ethernet
Ports: 8
Managed: Yes
POE: PoE+
Hurry, only 1 left in stock!
£259.59 ex VAT
£311.50 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

Cisco Business 350 series switches are affordable managed switches that provide critical building blocks for any small office network. Intuitive dashboard simplifies network setup, and advanced features accelerate digital transformation, while pervasive security protects business-critical transactions. Cisco Business 350 series switches provide the ideal combination of affordability and capabilities for small office and help you create a more efficient, better-connected workforce.

Cisco Business 350 series switches are fixed-configuration managed Ethernet switches. All Cisco Business 350 series switches support the advanced security management capabilities and network features you need to support enterprise-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.

  • SWITCH PORTS

    8-Port 10/100/1000 + 2 x 1GE copper/SFP combo
  • SIMPLE

    Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management
  • POWER-OVER-ETHERNET

    8 PoE ports with 67W total power budget, PoE, PoE+
  • ENHANCED SECURITY

    IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
  • INNOVATIVE DESIGN

    Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms

Specifications

Summary

Product Description
Cisco Business 350 Series 350-8P-2G - switch - 8 ports - Managed - rack-mountable
Device Type
Switch - 8 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
67 W
Performance
Switching capacity: 20 Gbps , Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
RPVST+ instances: 126 , MSTP instances: 8 , VLANs supported: 4094 , ACL rules: 1024 , Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
26.8 cm x 32.3 cm x 4.4 cm
Weight
3.5 kg
Localisation
Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 8 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
67 W
Performance
Switching capacity: 20 Gbps , Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
RPVST+ instances: 126 , MSTP instances: 8 , VLANs supported: 4094 , ACL rules: 1024 , Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, PoE, link/activity/speed

Expansion / Connectivity

Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ , 2 x 1000Base-T / 1000Base-X RJ-45/SFP , 1 x console (mini-USB) Type B , 1 x USB Type A , 1 x console RJ-45

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
83.17 Watt

Miscellaneous

Rack Mounting Kit
Included
MTBF
1,786,412 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localisation
Kuwait, Qatar, Saudi Arabia, Hong Kong, Malaysia, Singapore, United Kingdom

Dimensions & Weight

Width
26.8 cm
Depth
32.3 cm
Height
4.4 cm
Weight
3.5 kg

Manufacturer Warranty

Service & Support
Limited warranty - replacement - lifetime - response time: next business day , Technical support - web support - 1 year , Technical support - phone consulting - 1 year

Environmental Parameters

Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-25 °C
Max Storage Temperature
70 °C
Humidity Range Storage
10 - 90% (non-condensing)
