Description

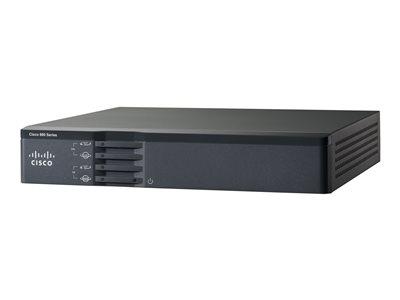

An entry level member of the Cisco Integrated Services Router Generation 2 (ISR G2) family, the Cisco 867VAE Integrated Services Router offers connectivity to teleworkers and small branches.
-
Robust security
Equipped with 10 IPSec VPN tunnels, the Cisco 867VAE offers a secure and reliable connection for transmitting sensitive data, ensuring your online activities remain private and protected. -
Comprehensive connectivity
This device boasts a variety of interfaces including Ethernet 10Base-T/100Base-TX for LAN and WAN connections, alongside an RJ-45 connector, providing versatile options for setting up and expanding your network. -
Advanced networking capabilities
With support for IPv6, NetFlow, and Class-Based Weighted Fair Queuing (CBWFQ), the Cisco 867VAE facilitates efficient data flow and network management, making it ideal for handling heavy traffic loads. -
High-speed Internet access
Featuring ADSL2+ and VDSL2 digital signaling protocols, the Cisco 867VAE delivers fast and reliable Internet access, ensuring smooth streaming, browsing, and downloading across your network. -
Easy remote management
Remote management protocols such as HTTP, HTTPS, SNMP 3, and SSH allow for convenient and secure configuration and monitoring of the device from anywhere, simplifying network administration tasks.
Specifications
Summary
- Product Description
- Cisco 867VAE - wireless router - DSL modem - Wi-Fi - desktop
- Device Type
- Wireless router - DSL modem - 5-port switch (integrated)
- Enclosure Type
- Desktop
- Digital Signaling Protocol
- ADSL2+, VDSL2
- WAN Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
- Frequency Band
- 2.4 GHz
- Capacity
- IPSec VPN tunnels: 10
- Network / Transport Protocol
- IPSec, PPPoE, PPPoA, DHCP, DNS
- Routing Protocol
- RIP-1, RIP-2, BGP, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 3, HTTP, HTTPS, SSH
- Features
- NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), SPI, MAC address filtering, IPv6 support, CBWFQ, WFQ, ACL support, QoS, DHCP server, DNS proxy, NetFlow
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0)
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 24.13 cm x 22.86 cm x 4.45 cm
- Localisation
- Europe
Detailed Specification
General
- Device Type
- Wireless router - 5-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
- Frequency Band
- 2.4 GHz
- Selectable Channels Qty
- 13
- Capacity
- IPSec VPN tunnels: 10
- Network / Transport Protocol
- IPSec, PPPoE, PPPoA, DHCP, DNS
- Routing Protocol
- RIP-1, RIP-2, BGP, policy-based routing (PBR)
- Remote Management Protocol
- SNMP 3, HTTP, HTTPS, SSH
- Encryption Algorithm
- LEAP, DES, Triple DES, MD5, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, PKI, 128-bit AES, 192-bit AES, 256-bit AES
- Authentication Method
- RADIUS, TACACS+
- Features
- NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), SPI, MAC address filtering, IPv6 support, CBWFQ, WFQ, ACL support, QoS, DHCP server, DNS proxy, NetFlow
- Compliant Standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.3ah, Wi-Fi CERTIFIED, IEEE 802.11n (draft 2.0), CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, EN 61000-4-3, EN 61000-4-6, AS/NZS 3548, FCC CFR47 Part 15, VCCI V-3
- RAM
- 256 MB (installed) / 256 MB (max)
- Flash Memory
- 128 MB (installed) / 128 MB (max)
- Status Indicators
- Port status, power
Line Properties
- Framing Format
- ANSI T1.413
Communications
- Type
- DSL modem
- Digital Signaling Protocol
- ADSL2+, VDSL2
- Protocols & Specifications
- ITU G.994.1 (G.hs), ITU G.992.3 Annex A, ITU G.992.3 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M, ITU G.992.5 Annex A, ITU G.992.5 Annex B, ITU G.992.3 Annex B
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX - RJ-45 , LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x VDSL2 / ADSL2+ - RJ-11 , Management: 1 x console - RJ-45 , USB 2.0: 1 x 4 pin USB Type A
Aerial
- Aerial
- External detachable
- Antenna Qty
- 3
- Directivity
- Omni-directional
- Gain Level
- 2 dBi
Power
- Power Device
- External power adapter - 30 Watt
- Voltage Required
- AC 120/230 V (50/60 Hz)
Miscellaneous
- Localisation
- Europe
Software / System Requirements
- OS Provided
- Cisco IOS Advanced Security
Dimensions & Weight
- Width
- 24.13 cm
- Depth
- 22.86 cm
- Height
- 4.45 cm
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 85%
