Description
Aironet outdoor access points are ideal for both enterprise and service provider network operators. They are high-performing outdoor access points and support the advanced Wi-Fi standard. The Aironet outdoor access points provide high throughput over a large area with pervasive coverage.
-
MU-MIMO
802.11ac Wave 2 with 3x3 Multiple Input Multiple-Output (MIMO) technology with up to three spatial streams, offering 1.3 Gbps rates for high capacity and reliability -
HDX HIGH DENSITY EXPERIENCE
Award-winning CleanAir to mitigate Wi-Fi and non-Wi-Fi interference, ClientLink to conserve battery life on mobile devices -
RADIO RESOURCE MANAGEMENT
Cisco's Radio Resource Management (abbreviated RRM) allows Cisco's Unified WLAN Architecture to continuously analyse the existing RF environments, automatically adjusting each AP's power and channel configurations to help mitigate things such as co-channel interference and signal coverage problems. RRM reduces the need to perform exhaustive site surveys, increases system capacity and provides automated self-healing functionality to compensate for RF dead zones and AP failures -
OPTIMISE RADIO COVERAGE
Cisco Flexible Antenna Port technology uses software configurable for either single or dual-band antennas. It allows you to use the same antenna ports for either dual-band antennas to reduce footprint or single-band antennas to optimise radio coverage -
PEACE OF MIND
1-year limited hardware warranty
Specifications
Summary
- Product Description

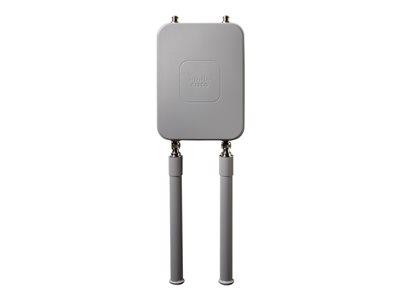

- Cisco Aironet 1562E - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- External - outdoor
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Spatial streams: 2
- Power Over Ethernet (PoE) Supported
- UPOE
- Dimensions (WxDxH)
- 17.1 cm x 9.8 cm x 22.9 cm
- Weight
- 2.5 kg
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 17.1 cm
- Depth
- 9.8 cm
- Height
- 22.9 cm
- Weight
- 2.5 kg
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Transfer Rate
- 1.3 Gbps
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Network / Transport Protocol
- L2TP, IPSec
- Frequency Band
- 2.4 GHz, 5 GHz
- Capacity
- Spatial streams: 2
- Features
- Auto-sensing per device, MAC address filtering, DFS support, VPN passthrough, CleanAir technology, reset button, 2T2R MIMO technology, ClientLink technology, Maximum Ratio Combining (MRC), radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic path selection (DPS), MAC address authentication
- Encryption Algorithm
- LEAP, AES, TLS, PEAP, TTLS, WPA, WPA2
- Authentication Method
- X.509 certificates, Extensible Authentication Protocol (EAP)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Aerial
- Antenna
- External detachable
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T - RJ-45 (WAN) , 1 x - SFP (mini-GBIC) , 1 x management - RJ-45 , 4 x aerial - F connector
Miscellaneous
- Compliant Standards
- EN 60950, IEC 60529 IP67, FCC Part 15.247, RSS-210, RSS-102, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, NEMA Type 4X, FCC Part 15.107, FCC Part 15.109, FCC Part 15.407, ARIB STD-T66, ARIB STD-T71, MIL-STD-810, EN 300 328, FCC OET Bulletin 65c, EN 301 489-1, AS/NZS 4268.2003, ANSI / IEEE 587 C62.41, NEMA 250-2008, EN 60068-2-5, UL 60950 Second Edition, IEC 60950 Second Edition, EN 60950 Second Edition, EN 301 893
Power
- Power Over Ethernet (PoE) Supported
- UPOE
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 55 °C
