VERSATILE
IP phone adapter brings traditional analogue devices into the IP world -
AUDIO
Clear, natural-sounding voice quality via advanced preprocessing, high-performance echo cancellation, voice activity detection and comfort noise generation -
SECURITY
Supports the latest encryption with Transport Layer Security (TLS), Secure Hash Algorithm (SHA-2) and new Secure Real-time Protocol (sRTP) cipher suites -
HARDWARE
Two RJ-11 FXS ports and two 10/100 Mbps RJ-45 Ethernet ports -
PEACE OF MIND
1-year limited hardware warranty
Specifications
Summary
- Product Description

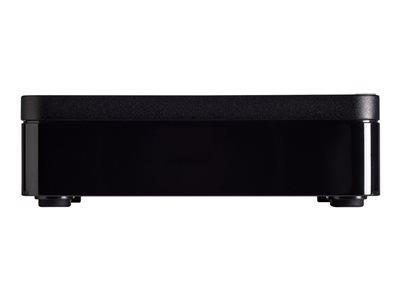

- Cisco ATA 192 Multiplatform Analog Telephone Adapter - VoIP phone adapter
- Device Type
- VoIP phone adapter
- Form Factor
- External
- Ports Qty
- 2
- Data Link Protocol
- Ethernet, Fast Ethernet
- VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Telephony Interfaces
- 2 phone (FXS)
- Power
- AC 120/230 V / DC 5 V (50/60 Hz)
- Dimensions (WxDxH)
- 10 cm x 10 cm x 2.8 cm
- Weight
- 132.1 g
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- VoIP phone adapter
- Width
- 10 cm
- Depth
- 10 cm
- Height
- 2.8 cm
- Weight
- 132.1 g
Networking
- Form Factor
- External
- Ports Qty
- 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- TCP/IP, UDP/IP, RTCP, RTP, ARP, PPPoE, IPSec, PPTP, L2TP
- Remote Management Protocol
- TR-069, HTTP, HTTPS, TFTP, SSH, SNMP 3
- Status Indicators
- Internet, phone, power
- Features
- IPv6 support, reset button, wall mountable, DHCP client, Internet Control Message Protocol (ICMP), SNTP support, Cisco Discovery Protocol, LLDP support, NAT support, port forwarding, DiffServ support, Type of Service (ToS), Automated Attendant (IVR), Syslog support, dual image support
- Encryption Algorithm
- ESP, AES, TLS 1.1, TLS 1.2
- Authentication Method
- Secure Shell (SSH)
- Compliant Standards
- IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q
IP Telephony
- VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Voice Codecs
- G.711a, G.711µ, G.726, G.729a, G.729ab, T.38, G.711
- Telephony Interfaces
- 2 phone (FXS)
- IP Telephony Features
- Call waiting, call forwarding, call hold, caller ID block/unblock, Caller ID, call transfer, distinctive ringing, Do-not-disturb (DND) support
Expansion / Connectivity
- Interfaces
- 2 x FXS - RJ-11 , 2 x 100Base-TX - RJ-45
Miscellaneous
- MTBF
- 300,000 hours
- Compliant Standards
- Directive 2014/30/EU, Directive 2014/35/EU, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950-1:2005 Second Edition, AS/NZS 60950-1:2015, AS/NZS CISPR32:2015 Class B, CISPR 32:2015 Class B, EN 55032:2015 Class B, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Part 15 B, ANSI C63.4-2014, ICES-003:2016
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V / DC 5 V (50/60 Hz)
- Power Consumption Operational
- 5 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
