Description

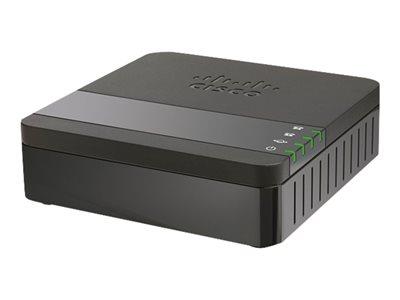

The Cisco ATA 191 analog telephone adapter turns traditional telephone, fax, and overhead paging communications devices into IP devices for greater cost-effectiveness. Customers can take advantage of IP telephony applications by connecting their analog devices to Cisco analog telephone adapters. The Cisco ATA 191 analog telephone adapter is the preferred solution to address the needs of customers who connect to enterprise networks, small offices, or the emerging unified communications as a service from the cloud. It has two standard FXS ports, which can be configured independently as two Session Initiation Protocol (SIP) registrations. With the ATA 191, customers can protect and extend their existing investment in analog systems, as well as smooth their migration to pure voice over IP in an affordable and reliable way.
-
Voice quality
Offers clear, natural-sounding voice quality via advanced preprocessing, high-performance echo cancellation, Voice Activity Detection (VAD), and Comfort Noise Generation (CNG). -
Central provisioning and configuration
Eases deployment via a Cisco Unified Communications Manager central interface. -
Security
Provides a complete security solution for both media and signaling. -
Problem reporting (PRT)
Improves serviceability with a dedicated PRT button for problem reporting and log collection. -
IPv6
Enables an IPv4/IPv6 dual stack to help migration to IPv6.
Specifications
Summary
- Product Description
- Cisco ATA 191 - VoIP phone adapter
- Device Type
- VoIP phone adapter
- Form Factor
- Wall mountable
- Data Link Protocol
- Ethernet, Fast Ethernet
- VoIP Protocols
- SIP, RTCP, RTP, SRTP
- Telephony Interfaces
- 2 phone (FXS)
- Power
- AC 120/230 V / DC 5 V
- Dimensions (WxDxH)
- 10 cm x 2.8 cm x 10 cm
- Weight
- 132.1 g
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- VoIP phone adapter
- Width
- 10 cm
- Depth
- 2.8 cm
- Height
- 10 cm
- Weight
- 132.1 g
Networking
- Form Factor
- Wall mountable
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- ARP, DHCP, RTP, RTCP
- Remote Management Protocol
- HTTP, HTTPS, TFTP, SSH
- Status Indicators
- Power, phone
- Features
- Syslog support, DiffServ support, IPv6 support, full duplex mode, SNTP support, Quality of Service (QoS), reset button, LLDP support, DHCP client, Type of Service (ToS), Internet Control Message Protocol (ICMP), dual image support, AES encryption, Cisco Discovery Protocol, secure boot, VLAN Tagging
- Encryption Algorithm
- AES
- Compliant Standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP)
IP Telephony
- VoIP Protocols
- SIP, RTCP, RTP, SRTP
- Voice Codecs
- G.711, G.729a, G.729ab, G.711u, G.711a, T.38
- Telephony Interfaces
- 2 phone (FXS)
- IP Telephony Features
- Echo cancellation, comfort noise generation (CNG), voice activity detection (VAD), call forwarding, Caller ID, adaptative jitter buffer, call waiting, call hold, call transfer, silence suppression
Expansion / Connectivity
- Interfaces
- 1 x 100Base-TX - RJ-45 , 2 x FXS - RJ-11
Miscellaneous
- MTBF
- 300,000 hours
- Compliant Standards
- FCC Part 15 B, EN 61000-4-2:2009, EN 61000-4-11:2004, EN 61000-3-3:2013, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-8:2010, EN 61000-4-5:2014, EN 55024:2010+A1:2015, Directive 2014/35/EU, Directive 2014/30/EU, EN 61000-4.4:2012, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, ANSI C63.4-2014, AS/NZS 60950-1:2015, EN 61000-3-2:2014 Class A, EN 55032:2015 Class B, AS/NZS CISPR32:2015 Class B, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V / DC 5 V
- Power Consumption Operational
- 5 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
