Description

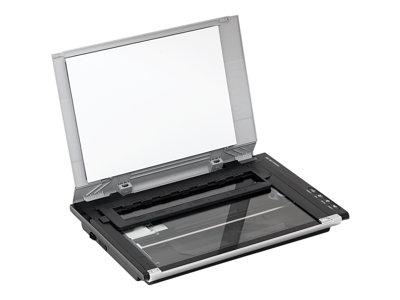

With its ingenious 3-way design and 180° lid, the LiDE 700F brings high resolution scanning to work spaces of all sizes. For exceptional detail and enlargements, scan 35mm film at up to 9600dpi.
A LiDE scanner with CIS sensor provides a winning combination of incredibly high resolution scans and low energy consumption. Powered by a single USB cable, connected to a computer, the LiDE 700F has no need for an additional power cable, making it truly portable and space saving.
Incredibly high resolution scans from 35mm film are possible thanks to a dedicated clip-on film scanning unit. This means massive enlargements and intricately detailed prints can be achieved from your 35mm film negatives/positives.
-
LiDE scanner with CIS sensor
A LiDE scanner with CIS sensor provides a winning combination of incredibly high resolution scans and low energy consumption. Powered by a single USB cable, connected to a computer, the LiDE 700F has no need for an additional power cable, making it truly portable and space saving. -
Innovative 3-way design
The LiDE 700F's ingenious 3-way design, with flip-out stand, allows it to be used in portrait, landscape or vertical positions – this means that it fits into almost any workspace. -
9600 x 9600 dpi film scanning
Incredibly high resolution scans from 35mm film are possible thanks to a dedicated clip-on film scanning unit. This means massive enlargements and intricately detailed prints can be achieved from your 35mm film negatives/positives. -
48-bit input
Achieve life-like color reproduction with 48bit input, which can replicate billions of separate colors – enhancing your color scans with amazingly accurate depth and tone. -
Auto scan mode
With one click, Auto Scan Mode automatically recognizes the type and format of your original, then scans and saves using suitable settings. One touch operation saves you time by eliminating the need for lengthy settings configuration. -
Configurable EZ buttons
The four configurable EZ buttons enable fast, convenient operation for PDF, Copy, Scan, and Email functions. You can choose the settings and assign them to each button – once these configurations are saved your scanner will work exactly as you need it to. -
QARE dust and scratch removal
QARE stands for Quick Automatic Retouching and Enhancement technology and does just that. Reflective documents and old photographs can now be easily enhanced and printed using a photo quality printer. The LiDE 700F automatically detects and removes dust from your scans for pristine results that save you time by removing the hassle of post-scan retouching.
Specifications
Summary
- Product Description
- Canon CanoScan LiDE 700F - flatbed scanner - desktop - USB 2.0
- Device Type
- Flatbed scanner - desktop
- Interface Type
- USB 2.0
- Scanning Sensor Type
- Contact Image Sensor (CIS)
- Light Source
- RGB LED array
- Max Supported Document Size
- 216 x 297 mm
- Input Type
- Colour
- Grayscale / Color Depth
- 48-bit colour
- Grayscale / Color Depth (External)
- 8-bit (256 grey levels) / 48-bit colour
- Optical Resolution
- 9600 dpi x 9600 dpi
- Interpolated Resolution
- 19200 dpi x 19200 dpi
- Scan Speed
- 2.4 ms / line (colour)
- Max Document Size
- 216 mm x 297 mm
- Supported Document Type
- Plain paper, film
- System Requirements
- Microsoft Windows 2000 Professional, Microsoft Windows XP, Apple MacOS X 10.4, Apple MacOS X 10.3.9, Microsoft Windows Vista, Apple MacOS X 10.5
- Microsoft Certification
- Certified for Windows Vista
- Dimensions (WxDxH)
- 29.2 cm x 40.9 cm x 4.4 cm
- Weight
- 2.1 kg
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Type
- Flatbed scanner - desktop
- Interface Type
- USB 2.0
- Max Supported Document Size
- 216 x 297 mm
Scanner
- Input Type
- Colour
- Grayscale Depth (External)
- 8-bit (256 grey levels)
- Colour Depth
- 48-bit colour
- Colour Depth (External)
- 48-bit colour
- Optical Resolution
- 9600 dpi x 9600 dpi
- Interpolated Resolution
- 19200 dpi x 19200 dpi
- Scanning Sensor Type
- Contact Image Sensor (CIS)
- Bulb / Light Source Type
- RGB LED array
- Scan Speed
- 2.4 ms / line (colour)
- Scanner Speed Details
- 2.4 ms/line - colour - 300 dpi , 2.3 ms/line - black & white - 300 dpi , 33.5 ms/line - colour - 4800 dpi , 11.3 ms/line - black & white - 4800 dpi , 2.3 ms/line - greyscale - 300 dpi , 11.3 ms/line - greyscale - 4800 dpi
- Scanner Features
- Powered by USB port
Media Handling
- Max Document Size
- 216 mm x 297 mm
- Supported Document Type
- Plain paper, film
Expansion / Connectivity
- Interfaces
- USB 2.0 - Type B
Miscellaneous
- Included Accessories
- Film adaptor
- Cables Included
- 1 x USB cable
- Certified for Windows Vista
- Certified for Windows Vista software and devices have undergone compatibility tests for ease-of-use, better performance and enhanced security.
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Consumption Operational (Standby)
- 2.5 Watt (1.5 Watt)
Software / System Requirements
- Software Included
- Drivers & Utilities, ScanGear Toolbox, ArcSoft PhotoStudio, MP Navigator EX
- OS Required
- Microsoft Windows 2000 Professional, Microsoft Windows XP, Apple MacOS X 10.4, Apple MacOS X 10.3.9, Microsoft Windows Vista, Apple MacOS X 10.5
Dimensions & Weight
- Width
- 29.2 cm
- Depth
- 40.9 cm
- Height
- 4.4 cm
- Weight
- 2.1 kg
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 10 - 90%
