Description
The HDBaseT HDMI + USB over cat5 extender is the perfect solution for long distance delivery of audio, video and USB signals from a computer or media player to an interactive whiteboard, touch screen, digital signage or other interactive display requiring high quality ULTRA HD video resolutions of up to 4K at 60Hz (2160p) at distances of up to 100 metres (328 feet). This HDBaseT HDMI + USB over Cat5 extender functions as an interface point for remote terminals, which provides a straightforward solution to control remote devices. With 4K HDMI AV output and four USB ports, this kit allows for multiple USB devices such as a touch screen, conference camera, mouse or keyboard next to an HDMI display to be installed in a remote location. With no drivers or software to install, the HDMI + USB over Cat5 Extender provides total plug and play convenience, passes EDID and HDCP and supports all USB 2.0 functionality. Simply run two solid Cat5e or Cat6 cables up to 100 metres (328 feet) between the transmitter at the source and the receiver at the display, connect all applicable devices, connect the power adapter and turn power on for all devices. The extender also extends IR and Serial control up to 100 metres using a standard remote.
-
Colour
Black -
Warranty
3 Years -
Connector 1
(1) HDMI Female, (1) RJ-45 Female, (1) Toslink Female, (1) RJ-11 Female, (1) USB Mini-B Female, (1) 3.5mm Stereo Female, (2) 3.5mm Mono Female -
Connector 2
(1) HDMI Female, (1) RJ-45 Female, (1) Toslink Female, (1) RJ-11 Female, (1) USB-A Female, (1) 3.5mm Stereo Female, (2) 3.5mm Mono Female
Specifications
Summary
- Product Description

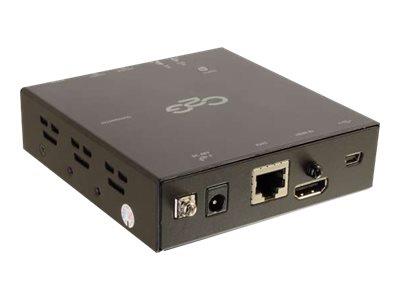

- C2G HDBaseT HDMI + USB Over Cat5 Extender - video/audio/infrared/USB/serial extender - HDBaseT 2.0
- Device Type
- Video/audio/infrared/USB/serial extender
- Form Factor
- Desktop
- Data Link Protocol
- HDBaseT 2.0
- Transmission Medium
- CAT 5
- Max Transfer Distance
- 100 m
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 9.8 cm x 10.2 cm x 2.8 cm
- Weight
- 1.6 kg
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- Video/audio/infrared/USB/serial extender
- Form Factor
- Desktop
- Colour
- Black
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- HDBaseT 2.0
- Max Transfer Distance
- 100 m
- Status Indicators
- Status
- Features
- Firmware upgradable, wall mountable, 4K resolution support, EDID Pass-Through, Dolby TrueHD support, DTS-HD Master Audio support, DTS support
- Compliant Standards
- USB 1.1, USB 2.0, HDCP 2.2
Expansion / Connectivity
- Interfaces
- 1 x HDMI (input) - 19 pin HDMI Type A female , 1 x HDMI (output) - 19 pin HDMI Type A female , 1 x TOSLINK (input) female , 1 x TOSLINK (output) female , 1 x RS-232 (input) - RJ-11 female , 1 x RS-232 (output) - RJ-11 female , 1 x audio (input) - mini jack female , 1 x audio (output) - mini jack female , 2 x IrDA (input) female , 2 x IrDA (output) female , 1 x mini-USB (power) - Type B female , 4 x USB 2.0 - Type A female
Miscellaneous
- Included Accessories
- IR extender, IR receiver, foot pad set
- Cables Included
- 1 x mini-USB to USB cable , 2 x DB-9 to RJ-11 adapter , Serial cable , RJ-11 phone cable
- Mounting Kit
- Included
- Compliant Standards
- VCCI, FCC, RoHS2
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Dimensions & Weight
- Width
- 9.8 cm
- Depth
- 10.2 cm
- Height
- 2.8 cm
- Weight
- 1.6 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
