Description
The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post-production.
Specifications
Summary
- Product Description
- ATEN CS1944DP - KVM / audio / USB switch - 4 ports
- Device Type
- KVM / audio / USB switch - 4 ports
- Subtype
- DisplayPort
- Ports
- 4 x KVM / audio
- KVM Users Qty
- 1 local user
- Features
- Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, Supports MultiStream (MST), daisy-chaining support, built-in 2-port USB 3.1 hub, DisplayPort Dual-Mode technology (DP++)
- Compliant Standards
- USB 3.1 Gen 1
- Dimensions (WxDxH)
- 33.5 cm x 15.66 cm x 4.4 cm
- Weight
- 1.51 kg
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- KVM / audio / USB switch - 4 ports
- Enclosure Type
- Desktop
- Subtype
- DisplayPort
- Ports
- 4 x KVM / audio
- KVM Local Users Qty
- 1 local user
- Keyboard / Mouse Interface
- USB
- Max Resolution
- 4096 x 2160 @ 60 Hz
- Features
- Firmware upgradable, HDCP compliant, 4K resolution support, metal housing, Supports MultiStream (MST), daisy-chaining support, built-in 2-port USB 3.1 hub, DisplayPort Dual-Mode technology (DP++)
- Compliant Standards
- USB 3.1 Gen 1
- Built-in Devices
- USB 3.1 Gen 1 hub
Expansion / Connectivity
- Interfaces
- 2 x keyboard (USB) / mouse (USB) Type A , 2 x DisplayPort output , 2 x microphone input mini-jack , 4 x headphones output mini-jack , 1 x network stack device RJ-45 , 4 x USB 3.1 Gen 1 Type B , 2 x USB 3.1 Gen 1 Type A , 4 x microphone output mini-jack , 4 x headphones input mini-jack , 8 x DisplayPort input
Power
- Power Device
- External power adapter
- Power Provided
- 12 V
- Power Consumption Operational
- 5.76 Watt
Miscellaneous
- Cables Included

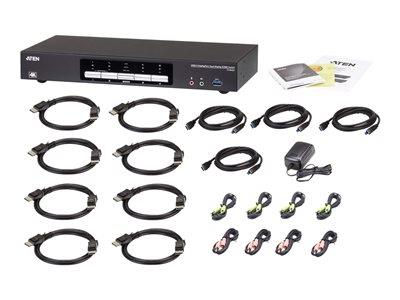

- 8 x DisplayPort cable , 4 x SuperSpeed USB cable , 8 x audio cable
- Compliant Standards
- DisplayPort 1.2
Dimensions & Weight
- Width
- 33.5 cm
- Depth
- 15.66 cm
- Height
- 4.4 cm
- Weight
- 1.51 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 0 - 80% (non-condensing)
- Min Storage Temperature
- -20 °C
- Max Storage Temperature
- 60 °C
