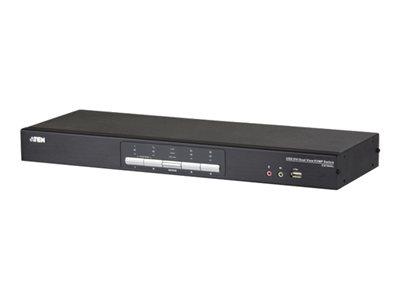

Aten 4-Port USB DVI Dual View KVMP Switch

Aten 4-Port USB DVI Dual View KVMP Switch

Review this product
Quicklinx: BMF4WS00 Mfr#: CS1644A
Type: KVM / audio / USB switch
Connectivity: KVM
Ports: 4
Ordered upon request
£287.73 ex VAT
£345.27 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The CS1644A 4-port USB DVI Dual View KVMP switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub.

The CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120 Hz 3D displaying, allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.

Specifications

Summary

Product Description
ATEN USB DVI Dual View KVMP Switch CS1644A - KVM / audio / USB switch - 4 ports - desktop
Device Type
KVM / audio / USB switch - 4 ports - USB - cascadable
Enclosure Type
Desktop
Subtype
KVM
Ports
4 x KVM / audio / USB
KVM Users Qty
1 local user
Features
Firmware upgradable, built-in 2 port USB 2.0 hub, Video DynaSync, 3D support, nVidia 3D Vision ready
Dimensions (WxDxH)
43.24 cm x 15.41 cm x 4.4 cm
Weight
2.32 kg
System Requirements
SunSoft Solaris, Apple MacOS, FreeBSD, Linux Kernel 2.6 or later, Microsoft Windows Vista / 2000 / XP


Detail

General

Device Type
KVM / audio / USB switch - 4 ports - cascadable
Enclosure Type
Desktop
Subtype
KVM
Ports
4 x KVM / audio / USB
KVM Local Users Qty
1 local user
Keyboard / Mouse Interface
USB
Max Cascading Depth
3
Max Resolution
2560 x 1600 @ 60 Hz
Features
Firmware upgradable, built-in 2 port USB 2.0 hub, Video DynaSync, 3D support, nVidia 3D Vision ready
Status Indicators
Power, status, USB, operation mode, audio

Expansion / Connectivity

Interfaces
4 x keyboard (USB) / mouse (USB) - Type B , 4 x microphone input - mini-jack , 4 x audio output - mini-jack , 8 x DVI-I (dual link) , 1 x keyboard (USB) - Type A , 1 x mouse (USB) - Type A , 1 x microphone input - mini-jack , 1 x audio output - mini-jack , 2 x DVI-I (dual link) , 2 x USB 2.0 - Type A , 1 x cascading - RJ-45

Power

Power Device
External power adapter
Power Consumption Operational
12.19 Watt

Miscellaneous

Cables Included
8 x DVI cable
Compliant Standards
RoHS, WEEE, FCC Part 15 A

Software / System Requirements

OS Required
SunSoft Solaris, Apple MacOS, FreeBSD, Linux Kernel 2.6 or later, Microsoft Windows Vista / 2000 / XP

Dimensions & Weight

Width
43.24 cm
Depth
15.41 cm
Height
4.4 cm
Weight
2.32 kg

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
0 - 80% (non-condensing)
Min Storage Temperature
-20 °C
Max Storage Temperature
60 °C
