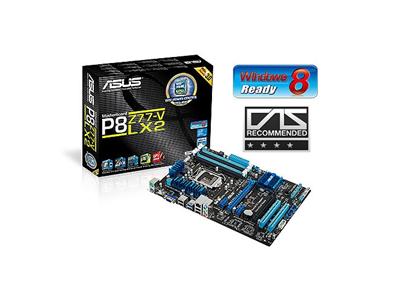

Asus P8Z77-V LX2 S1155 Intel Z77 DDR3 ATX

Asus P8Z77-V LX2 S1155 Intel Z77 DDR3 ATX

Review this product
Quicklinx: 8BYDWS00 Mfr#: P8Z77-V LX2
Discontinued

Description

This motherboard supports Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd generation Intel Core processor-based platform and 2nd generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.

  • Intel Smart Response technology

    Intel Smart Response technology boosts overall system performance. It uses an installed fast SSD (min 18.6 GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system.
  • Intel Smart Connect technology

    Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience.
  • Intel Rapid Start technology

    Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping the energy use low.
  • LucidLogix Virtu MVP

    LucidLogix Virtu MVP featuring HyperFormance technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel processor graphics and Windows 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel Quick Sync Video technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency.
  • PCIe 3.0 ready

    PCI Express 3.0 is the PCI Express bus standard with improved encoding schemes that provides twice the performance of current PCIe 2.0. As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them.
  • DIGI+ VRM digital power design

    Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. Users can adjust CPU PWM voltages and frequencies for various overclocking scenarios, with accurate input through UEFI BIOS tuning or the exclusive ASUS interface. This proprietary design increases overclocking headroom to push performance to its full potential.
  • Accelerated USB 3.0 data transfer rates with ASUS USB 3.0 Boost technology

    With USB 3.0 Boost technology, USB transfer speeds are significantly increased up to 132%, enhancing an already impressive USB 3.0 transfer rate. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any further user configuration.
  • Energy efficiency all around

    Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
  • Real-time network bandwidth control

    With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.
  • GPU boost

    GPU boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use.
  • Enjoy Full HD 1080p multimedia home-theater entertainment

    High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals and 3D animation through all high speed HDMI cable with 3D devices. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
  • Flexible and easy BIOS interface

    ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond the traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2 TB in 64-bit operating systems.
  • ASUS exclusive interface

    EZ mode displays frequently-accessed info. Users can choose system performance settings, and drag and drop boot priorities. Advanced mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.

Specifications

Summary

Product Description
ASUS P8Z77-V LX2 - motherboard - ATX - LGA1155 Socket - Z77
Product Type
Motherboard - ATX
Chipset Type
Intel Z77 Express
Processor Socket
1 x LGA1155 Socket
Compatible Processors
Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series
Max RAM Size
32 GB
RAM Supported
4 DIMM slots - DDR3, non-ECC, unbuffered
Storage Ports
2 x SATA-600 (RAID), 4 x SATA-300 (RAID)
USB / FireWire Ports
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via headers)
Max Allocated RAM Size
1696 MB
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
Microsoft Certification
Compatible with Windows 7


Detailed Specification

General

Product Type
Motherboard - ATX
Chipset Type
Intel Z77 Express
Processor Socket
LGA1155 Socket
Max Processors Qty
1
Compatible Processors
Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series

Supported RAM

Max Size
32 GB
Technology
DDR3
Bus Clock
2400 MHz, 2200 MHz, 2000 MHz, 1800 MHz, 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Graphics

Max Allocated RAM Size
1696 MB

Audio

Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio

LAN

Network Controller
Realtek RTL8111F
Network Interfaces
Gigabit Ethernet

Expansion / Connectivity

Expansion Slots
1 x CPU , 4 x DIMM 240-pin , 1 x PCIe 3.0 x16 (3rd generation Intel Core processor must be installed) , 1 x PCIe 2.0 x16 (x4 mode) , 2 x PCIe 2.0 x1 , 2 x PCI
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 , SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
Intel Smart Response Technology
Interfaces
1 x PS/2 keyboard , 1 x PS/2 mouse , 1 x VGA , 1 x LAN (Gigabit Ethernet) , 2 x USB 3.0 , 4 x USB 2.0 , 1 x HDMI , 1 x audio line-out - mini-jack , 1 x audio line-in - mini-jack , 1 x microphone - mini-jack
Internal Interfaces
2 x USB 3.0 , 4 x USB 2.0 , 1 x serial - header , 1 x SPDIF out - header , 1 x audio - header
Power Connectors
4-pin ATX12V connector, 24-pin main power connector

Features

BIOS Features
DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ASUS EFI BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 4.0a support
Sleep / Wake Up
Wake on LAN (WOL), wake on ring (WOR)
Hardware Features
C.P.R. (CPU Parameter Recall), jack retasking, ASUS Anti-Surge Protection, GPU Boost, ASUS EZ DIY, CrashFree BIOS 3, All-Solid Capacitor motherboard Design, ASUS Stepless Frequency Selection (SFS), audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Precision Tweaker 2, Intel Extreme Memory Profile (XMP) support, ASUS 4+1 Phase Power Design, ASUS TurboV, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Fanless Design Heatsink, USB 3.0 Boost, ASUS Fan Xpert+, AMD Quad CrossFireX technology support, ASUS DIGI+ Power Control, ASUS Network iControl, Intel Rapid Start Technology, Intel Smart Connect Technology, Low EMI Solution, Disk Unlocker

Miscellaneous

Cables Included
2 x Serial ATA cable
Software Included
Drivers & Utilities, ASUS MyLogo2, ASUS EZ Flash 2, ASUS AI Suite II, ASUS AI Charger, ASUS Update
Compatible with Windows 7
"Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards
Plug and Play, ACPI 4.0a
Width
30.5 cm
Depth
21.3 cm
